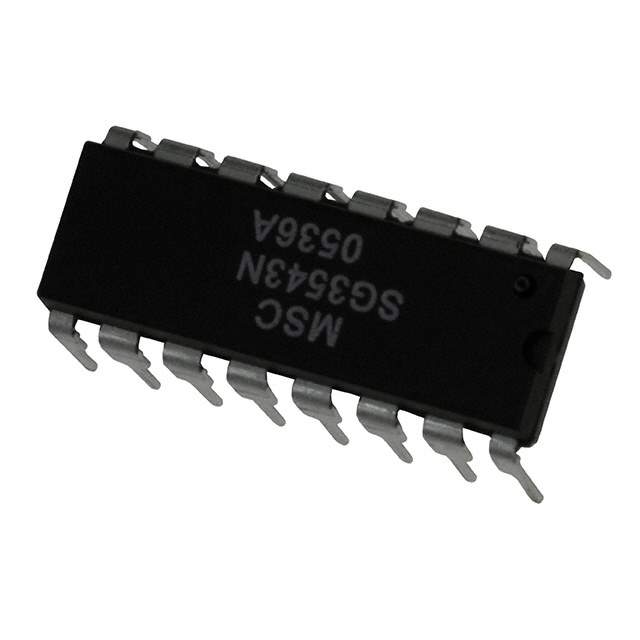

SG3543N Real Image
Same model may have multiple batches, images only for reference.

SG3543N

Part No SG3543N
Manufacturer Microsemi Corporation
Catalog PMIC - Power Supply Controllers, Monitors
Description POWER SUPPLY OUTPUT SUPERVISORY CIRCUIT
Datasheet
SG3543N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Microsemi Corporation
Packaging Tube
Applications Power Supply, Supervisor
Operating Supply Voltage 4.5 V ~ 40 V
Operating Supply Current 7mA
Operating Temperature Range 0°C ~ 70°C
Mounting Style Through Hole
Package 16-DIP
Manufacturer Package 16-DIP
RoHS State Request Verification
Win Source Part Number 1248382-SG3543N
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Limited
Family Name SG3543
Introduction Date June 18, 1997
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian SG3543N CAD Model

Description

The SG3543N is an integrated circuit designed for power supply and supervisor applications.

  • Mounting Style: Through-hole
  • Operating Temperature: 0°C to 70°C
  • Package: 16-DIP
  • Operating Supply Voltage: 4.5 V to 40 V
  • Operating Supply Current: 7mA
  • Introduction Date: June 18, 1997
  • Status: Obsolete
  • Popularity: Medium
  • Supply and Demand: Limited
  • Manufacturer: Microsemi Corporation
