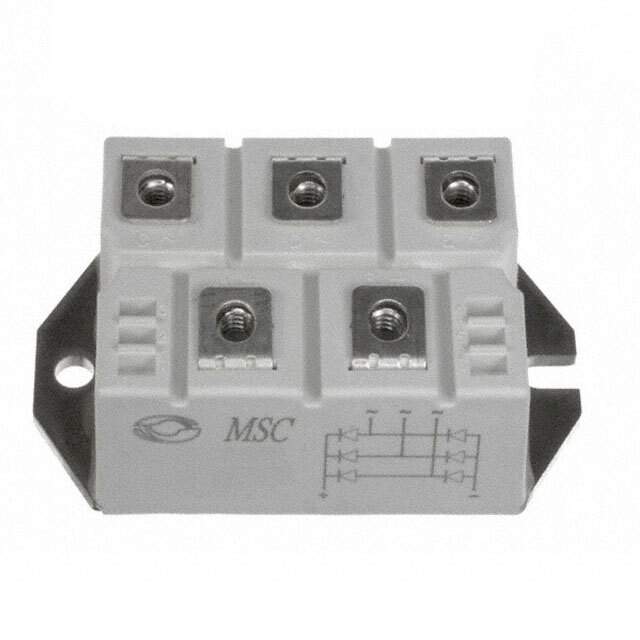

MSD100-16 Real Image
Same model may have multiple batches, images only for reference.

MSD100-16

Part No MSD100-16
Manufacturer Microsemi Corporation
Catalog Bridge Rectifiers
Description BRIDGE RECT 3PHASE 1.6KV 100A M3
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features Bridge Rectifier Three Phase Standard 1.6 kV Chassis Mount M3
Manufacturer Microsemi Corporation
Package Bulk
Part Status Obsolete
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting Chassis Mount
Package M3
Case / Package M3
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number MSD100-16MP, MSD100-16MP-ND, MSD10016
Quantity per package 1
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 885949-MSD100-16
Ultra Librarian 3D Model Ultra Librarian MSD100-16 CAD Model

Description

The Microsemi Corporation 885949-MSD100-16 is a bridge rectifier that is now obsolete. It is a three-phase standard device with a 1.6 kV chassis mount.

  • Type: Three-Phase Standard Bridge Rectifier
  • Voltage: 1.6 kV
  • Mounting Type: Chassis Mount
  • Operating Temperature: -40°C to 150°C (TJ)
  • Package: Bulk
  • Case/Package: M3
  • Supply and Demand Status: Limited
  • Quantity per Package: 1
  • Status: Obsolete
  • Manufacturer: Microsemi Corporation
