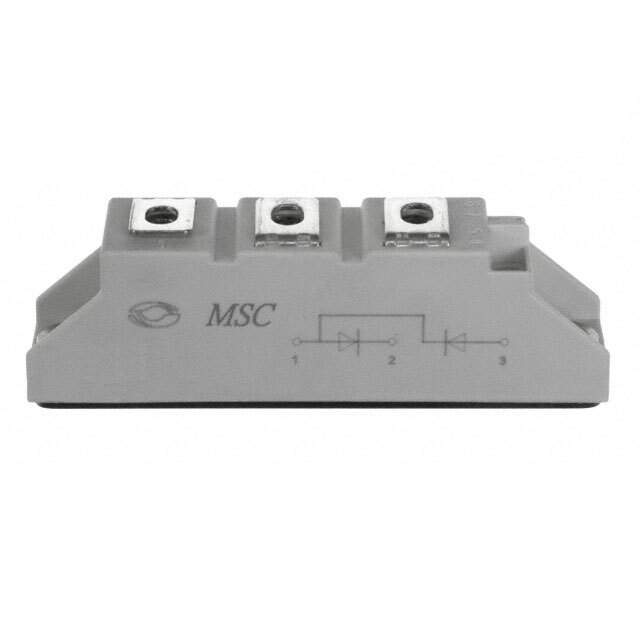

MSCD36-16 Real Image
Same model may have multiple batches, images only for reference.

MSCD36-16

Part No MSCD36-16
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Arrays
Description DIODE MODULE 1.6KV 36A D1
Datasheet
MSCD36-16 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Status Obsolete(EOL)
Diode Configuration 1 Pair Series Connection
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1600V
Current - Average Rectified (Io) (per Diode) 36A
Voltage - Forward (Vf) (Max) @ If 1.25V @ 100A
Speed(Frequency) Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 5mA @ 1600V
Mounting Chassis Mount
Case / Package D1
Win Source Part Number 1094908-MSCD36-16
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1
Ultra Librarian 3D Model Ultra Librarian MSCD36-16 CAD Model

Description

The Microsemi Corporation MSCD36-16 is an electronic component that belongs to the category of discrete semiconductor products.

  • Supply and Demand Status: balanced
  • Status: obsolete (EOL)
