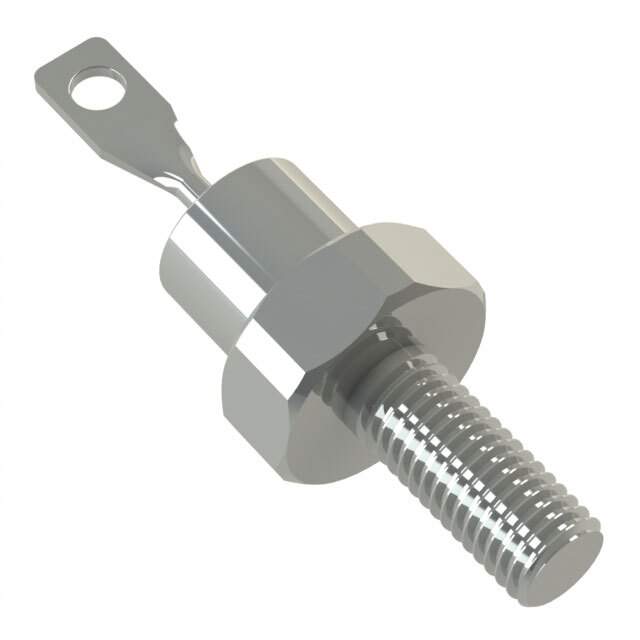

JANTX1N6391

Name: JANTX1N6391
Brand: Microsemi Corporation
SKU: 608778
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	JANTX1N6391
Manufacturer	Microsemi Corporation
Catalog	Diodes, Rectifiers - Single
Description	Military Schottky Rectifier \| DIODE SCHOTTKY 45V 22.5A DO203AA
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Microsemi Corporation
Packaging	Bulk
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Maximum)	45V
Current - Average Rectified (Io)	22.5A
Voltage - Forward (Vf) (Maximum) at If	680mV at 50A
Speed	Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr	1.5mA at 45V
Capacitance at Vr, F	2000pF at 5V, 1MHz
Mounting Style	Chassis, Stud Mount
Manufacturer Package	DO-203AA, DO-4, Stud
Supplier Device Package	DO-203AA (DO-4)
Operating Temperature - Junction	-55°C ~ 175°C
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1191466-JANTX1N6391
Manufacturer Homepage	www.microsemi.com
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian JANTX1N6391 CAD Model

Alternative Products

Description

The 1191466-JANTX1N6391 is a Schottky diode, manufactured by Microsemi Corporation.

Category: Discrete Semiconductor Products
Package: DO-203AA (DO-4)
Voltage - DC Reverse (Vr) (Maximum): 45V
Diode Type: Schottky
Current - Average Rectified (Io): 22.5A
Operating Temperature Range: -55°C to 175°C
Capacitance @ Vr, F: 2000pF @ 5V, 1MHz
