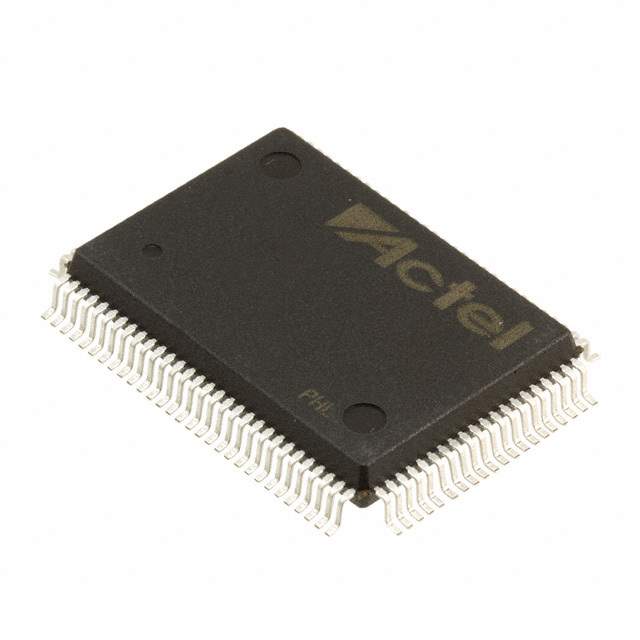

A42MX16-3PQ100I Real Image
Same model may have multiple batches, images only for reference.

A42MX16-3PQ100I

Part No A42MX16-3PQ100I
Manufacturer Microsemi Corporation
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 83 I/O 100QFP / 40MX and 42MX FPGA Families
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Microsemi Corporation
Packaging Tray
Part Status Obsolete (End Of Life)
Number of I/O 83
Number of Gates 24000
Supply Voltage (V) 3V ~ 3.6V, 4.5V ~ 5.5V
Mounting Style SMD
Temperature Range - Operating -40°C ~ 85°C
Manufacturer Package 100-BQFP
Supplier Device Package 100-PQFP (20x14)
Part Number Series A42MX16
Manufacturer Pack Quantity 66
MSL Level 3 (168 Hours)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812016-A42MX16-3PQ100I
Ultra Librarian 3D Model Ultra Librarian A42MX16-3PQ100I CAD Model

Description

The A42MX16-3PQ100I is an obsolete electronic component manufactured by Microsemi Corporation.

  • Part Status: Obsolete (end of life)
  • Package: Tray
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 66
  • Device Package: 100-PQFP (20x14)
  • Manufacturer Package: 100-BQFP
  • Temperature Range: -40°C ~ 85°C
  • Supply Voltage: 3V ~ 3.6V, 4.5V ~ 5.5V
  • Part Number Series: A42MX16
  • Gates: 24,000
  • I/Os: 83
  • MSL Level: 3 (168 hours)
