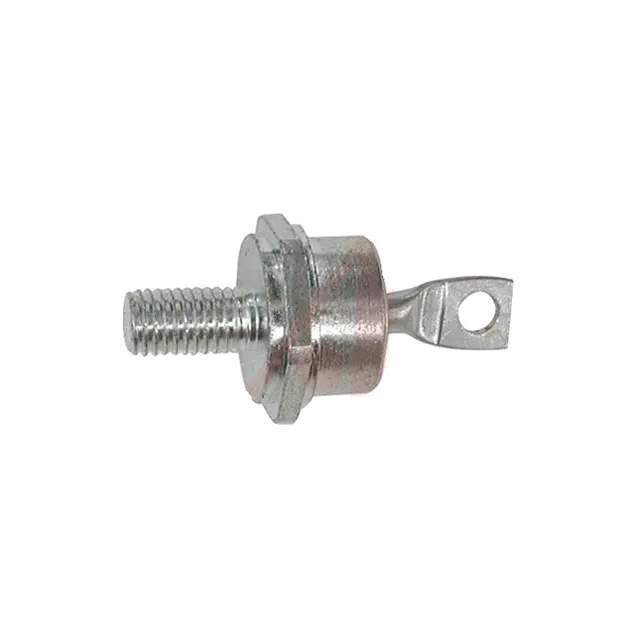

1N3312B Real Image
Same model may have multiple batches, images only for reference.

1N3312B

Part No 1N3312B
Manufacturer Microsemi Corporation
Catalog Diodes - Zener - Single
Description DIODE ZENER 13V 50W DO5
Datasheet
1N3312B Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Status Active
Voltage - Zener (Nom) (Vz) 13V
Tolerance ±5%
Maximum Power Dissipation 50W
Impedance (Max) (Zzt) 1.1 Ohm
Current - Reverse Leakage @ Vr 10μA @ 9.9V
Voltage - Forward (Vf) (Max) @ If 1.5V @ 10A
Temperature Range - Operating -65°C to 175°C
Mounting Chassis, Stud Mount
Case / Package DO-5
Win Source Part Number 134886-1N3312B
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Ultra Librarian 3D Model Ultra Librarian 1N3312B CAD Model

Description

Description

The 1N3312B is a dual-purpose Zener and switching diode that offers high efficiency and low power consumption, perfect for use in both signal handling and voltage regulation applications.

Features and Benefits

  • Dual function (Zener and Switch)
  • Low power loss
  • Efficient in high-frequency applications

Applications

  • Signal processing systems
  • Integrated circuits
  • Power management units

Additional Details

Designed to excel in dual roles, the 1N3312B allows for more compact circuit designs, reducing the component count while maintaining functionality and performance.
