The N25Q512A11G1240F is a 512Mb (536,870,912 bits) Serial Flash Memory device from Micron Technology. Part of the N25Q family, it is known for its high performance, reliability, and low power consumption. It utilizes a standard Serial Peripheral Interface (SPI) for communication, making it well-suited for various embedded systems where high-density, non-volatile memory is required.

Applications

• Embedded systems needing high-density non-volatile storage for boot code, application code, and data.
• Automotive systems for storing firmware, map data, and configuration settings in navigation and infotainment systems.
• Industrial control systems for storing program code, data logging information, and configuration settings in PLCs and HMIs.
• Networking equipment, such as routers and switches, for storing boot code, firmware, and configuration data.
• Consumer electronics, including set-top boxes, digital TVs, and gaming consoles, for storing firmware, application data, and media content.

Features

• Density: 512Mb (536,870,912 bits)
• Interface: SPI (Serial Peripheral Interface)
• Supply Voltage: 2.7V to 3.6V
• Operating Temperature: -40°C to +85°C
• Page Size: 256 bytes
• Sector Size: 4KB
• Block Size: 64KB
• High Performance: Provides fast read and write speeds for efficient data access and rapid system response.
• Security Features: Incorporates block protection and password protection to safeguard stored data.
• Advanced Sector Protection: Offers individual sector locking to protect critical code and data from unauthorized modification or access.
• Serial Command Set: Compliant with an industry-standard serial command set, facilitating easy integration and control.

Benefits

• Reliable Storage: Offers non-volatile storage, ensuring data retention even in the event of power loss.
• High Capacity: Provides ample storage space for large code bases, extensive data sets, and complex configuration settings.
• Fast Performance: Enables quick boot times and efficient data handling, enhancing overall system performance.
• Low Power Consumption: Reduces power consumption, making it suitable for battery-powered devices and energy-efficient applications.
• Compact Size: Small form factor allows for integration in space-constrained designs.
• Easy Integration: Standard SPI interface simplifies connection to microcontrollers and other system components.

Additional Details

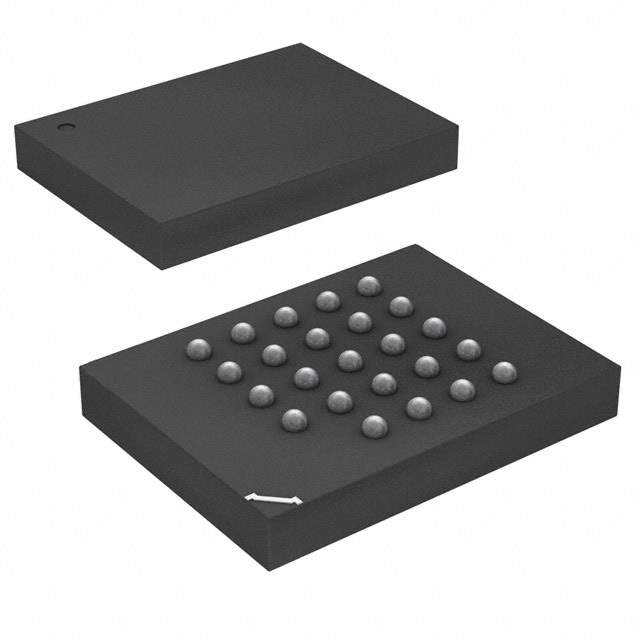

The N25Q512A11G1240F supports standard, dual, and quad SPI operation modes, providing flexible data transfer rates. It includes a deep power-down mode to further minimize power consumption when idle. The device is available in various package options to suit different board layout requirements. It also features one-time programmable (OTP) memory for secure storage of critical data. The extended temperature range ensures reliable operation in demanding environmental conditions.
