The M29W064FB70N3E is a 64 Mbit (8 Mb x 8 or 4 Mb x 16) Flash memory device from Micron Technology. It is a non-volatile memory that can be electrically erased and reprogrammed. It is designed for applications requiring high density, low power consumption, and fast access times.

Applications:

• Embedded Systems: Used for storing firmware and application code in embedded systems.
• Networking Equipment: Employed in routers, switches, and other networking devices.
• Industrial Control Systems: Used in industrial control systems for storing configuration data and program code.
• Consumer Electronics: Found in various consumer electronic devices such as digital cameras and MP3 players.

Features:

• 64 Mbit Density: Provides a high storage capacity of 64 Mbits.
• Page Mode Operation: Allows for fast programming and erasing of data.
• Sector Erase: Supports sector erase operations for flexible memory management.
• Low Power Consumption: Designed for low power consumption in both active and standby modes.
• 70ns Access Time: Offers fast access times for quick data retrieval.
• Single 3V Supply: Operates from a single 3V power supply.

Benefits:

• High Density Storage: Provides ample storage capacity for code and data.
• Fast Performance: Enables quick data access and programming.
• Low Power Consumption: Minimizes power consumption in battery-powered applications.
• Reliable Operation: Offers reliable data storage and retrieval.
• Versatile: Suitable for a wide range of embedded and storage applications.

Additional Details:

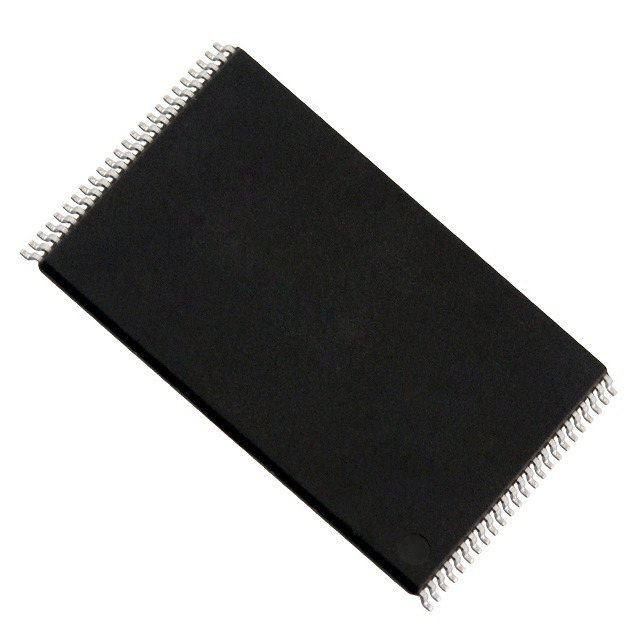

The M29W064FB70N3E has specific timing parameters, such as program time, erase time, and read cycle time, which are detailed in the Micron datasheet. The device supports various protection mechanisms to prevent accidental data corruption. It is typically available in surface-mount packages (e.g., TSOP) for easy PCB assembly. The datasheet specifies the recommended operating conditions, including supply voltage range and temperature range. Proper decoupling capacitors should be used near the power supply pins to minimize noise and ensure stable operation. Refer to the Micron datasheet for detailed electrical characteristics, timing diagrams, and application notes. The device utilizes a specific memory map and addressing scheme for accessing the stored data.
