Same model may have multiple batches, images only for reference.

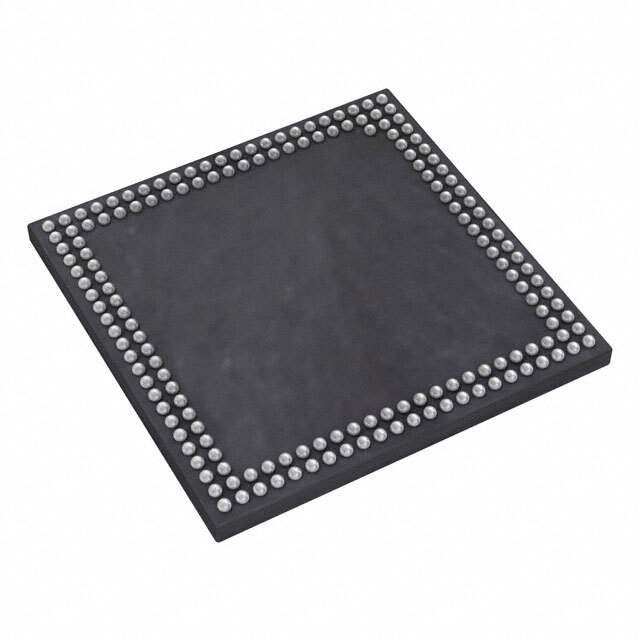

EDB2432BCPA-8D-F-D Real Image
Same model may have multiple batches, images only for reference.

EDB2432BCPA-8D-F-D

Part No EDB2432BCPA-8D-F-D
Manufacturer Micron Technology Inc.
Catalog Memory
Description IC DRAM 2GBIT PARALLEL 168WFBGA / SDRAM - Mobile LPDDR2 Memory IC 2Gbit Parallel 400 MHz 168-WFBGA (12x12)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Micron Technology Inc.
Package Tray
Product Status Obsolete
Programmable Not Verified
Memory Type Volatile
Memory Format DRAM
Technology SDRAM - Mobile LPDDR2
Memory Size 2Gbit
Memory Organization 64M x 32
Memory Interface Parallel
Clock Frequency 400 MHz
Voltage - Supply 1.14V ~ 1.95V
Temperature Range - Operating -30°C ~ 85°C (TC)
Mounting Type Surface Mount
Package / Case 168-WFBGA
Supplier Device Package 168-WFBGA (12x12)
Base Product Number EDB2432
Standard Package 1,260 pcs
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.32.0036
Win Source Part Number 870100-EDB2432BCPA-8D-F-D
Ultra Librarian 3D Model Ultra Librarian EDB2432BCPA-8D-F-D CAD Model

Description

The 806253 is a mobile LPDDR2 memory module designed for use in various electronic applications.

  • Memory Size: 2Gbit
  • Voltage Supply Range: 1.14V to 1.95V
  • Memory Interface: Parallel
  • Package: Tray
