Microchip Technology PIC16F687-I/P Microcontroller

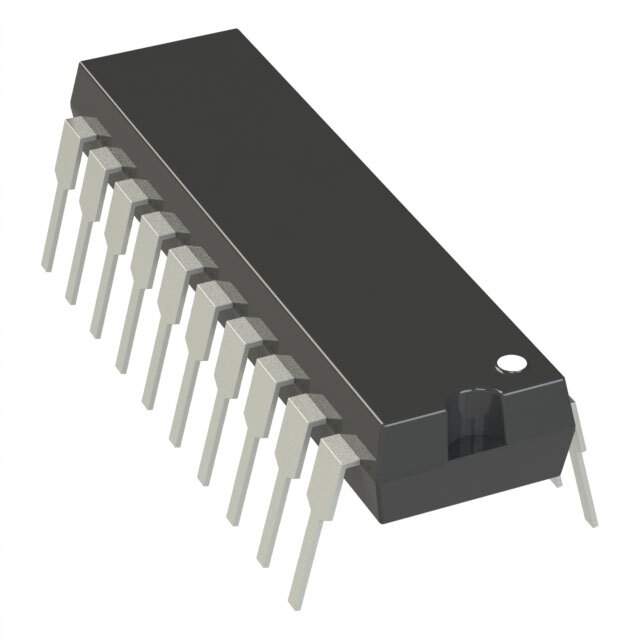

The PIC16F687-I/P is a high-performance, 8-bit microcontroller from Microchip Technology, designed for a wide range of applications that require a robust and versatile control solution. This particular model comes in a PDIP (Plastic Dual In-line Package) format, which makes it suitable for through-hole mounting on printed circuit boards.

The microcontroller features a rich set of peripherals and an enhanced CPU with an operating speed of up to 20 MHz. With its 4096 bytes of flash memory, the PIC16F687-I/P offers ample space for program storage, while its 256 bytes of EEPROM provide reliable data retention without the need for an external storage component. The device also includes 256 bytes of RAM, ensuring smooth operation and efficient data handling.

One of the key features of the PIC16F687-I/P is its integrated Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART), which allows for flexible serial communication in either synchronous or asynchronous mode. This is particularly useful for applications that require connectivity with other processors or peripheral devices.

Additionally, the microcontroller boasts a 10-bit Analog-to-Digital Converter (ADC) with up to 14 channels, enabling precise measurement of analog signals. This makes it an ideal choice for sensor interfacing and data acquisition tasks. The device also supports two Capture/Compare/PWM (CCP) modules, which are essential for generating accurate timing sequences, controlling motors, and managing various PWM tasks.

The PIC16F687-I/P includes a comprehensive set of safety and power-saving features. Its Power-on Reset (POR), Power-up Timer (PWRT), Oscillator Start-up Timer (OST), Watchdog Timer (WDT), and Brown-out Reset (BOR) functionalities ensure reliable operation under varying power conditions and help prevent system crashes and data corruption.

In summary, the Microchip Technology PIC16F687-I/P microcontroller is a powerful and flexible solution for designers looking to implement advanced control systems in their projects. Its combination of memory, communication interfaces, and robust peripheral set make it a versatile choice for a vast array of applications, from industrial control to consumer electronics.
