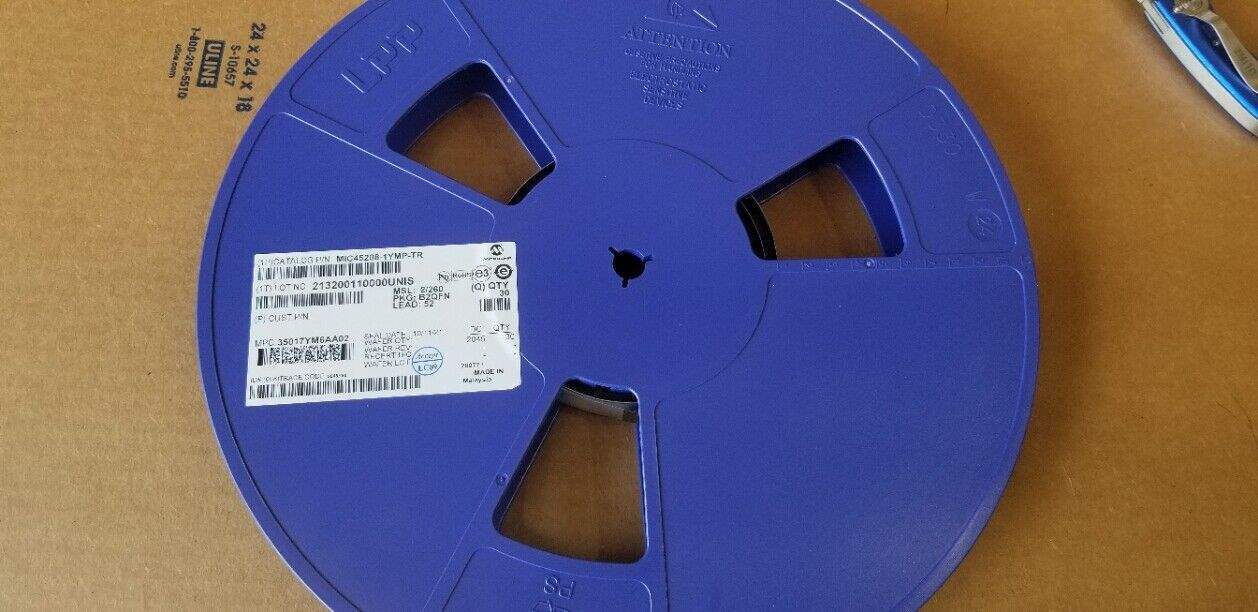

Microchip Technology's MIC45208-1YMP-TR Power Module

The MIC45208-1YMP-TR is a highly efficient, fully integrated power module from Microchip Technology, designed to simplify the power supply design process for a wide range of applications. This compact module integrates a synchronous buck regulator with power MOSFETs, a driver IC, inductors, and all the passive components required for a complete power solution. Its small footprint and high level of integration make it an ideal choice for space-constrained applications.

Key Features

• High Efficiency: The MIC45208-1YMP-TR is designed to deliver high efficiency, which can reach up to 95% under certain conditions. This helps to reduce power losses and improve overall system performance.
• Wide Input Voltage Range: The module operates over a broad input voltage range of 4.5V to 14.4V, making it suitable for a variety of supply voltages.
• Adjustable Output Voltage: It offers an adjustable output voltage range from 0.7V to 5.5V, providing flexibility to power different ICs and peripherals.
• High Output Current: The module is capable of delivering up to 8A of continuous output current, which is sufficient for high-power applications.
• Thermal Management: With an integrated thermal pad and over-temperature protection, the MIC45208-1YMP-TR ensures reliable operation even at high power levels.
• Protection Features: It includes a full array of protection features such as under-voltage lockout, over-current protection, and short-circuit protection to ensure the safety and reliability of your power supply.

Applications

The MIC45208-1YMP-TR is versatile and can be used in various applications, including:

• Telecommunications and networking equipment
• Enterprise servers and storage systems
• Industrial systems
• Point-of-load applications
• FPGA, DSP, and ASIC power supplies

With its easy-to-use, compact design, the MIC45208-1YMP-TR from Microchip Technology is an excellent choice for designers looking to reduce development time while achieving high power density and efficiency in their power supply solutions.
