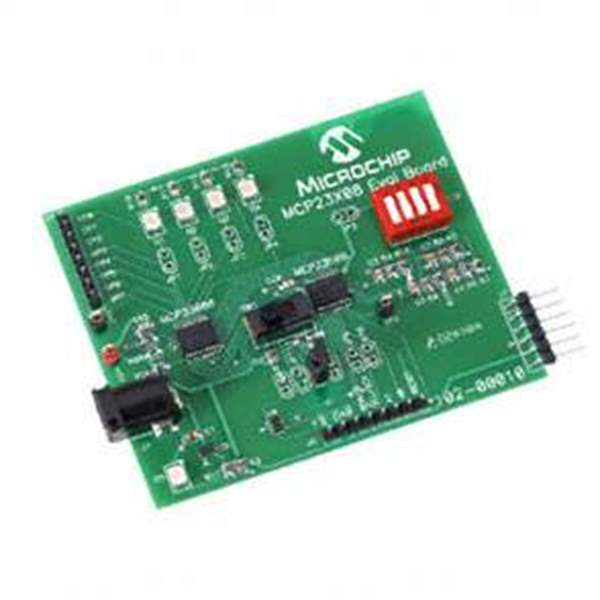

Microchip Technology MCP23X08EV Evaluation Board

The MCP23X08EV from Microchip Technology is a versatile and robust evaluation board designed for testing and experimenting with the MCP23008/MCP23S08 8-bit I/O expanders. These expanders provide an easy way to add additional I/O capabilities to a microcontroller or microprocessor-based system through a standard I²C interface (MCP23008) or SPI interface (MCP23S08).

The evaluation board comes equipped with a range of features that make it an ideal platform for developers and engineers to explore the functionality of the MCP23008 and MCP23S08 devices. With the MCP23X08EV, users can quickly prototype and test their designs, accelerating the development process for applications that require expanded I/O.

Key Features:

• Interface Options: The board supports both I²C (MCP23008) and SPI (MCP23S08) interfaces, allowing for flexibility in communication protocols.
• Expandable I/O: The MCP23X08EV provides 8 additional general-purpose I/O pins, which can be configured as input or output, making it suitable for a wide range of applications.
• On-Board Indicators: LED indicators for power and I/O status provide visual feedback for debugging and testing purposes.
• Easy Integration: The evaluation board is designed for seamless integration with existing development setups, featuring standard connector interfaces.
• Configurable Addressing: Multiple hardware address pins allow for the configuration of up to eight devices on the same bus, enabling the control of up to 64 I/Os.

The MCP23X08EV is an excellent tool for developing applications in areas such as home automation, industrial control, and any other systems that require additional I/O lines. It provides a cost-effective and time-saving solution for expanding the I/O capabilities of your microcontroller-based projects.

With its user-friendly features and comprehensive support materials, including datasheets, technical documentation, and example code, the MCP23X08EV evaluation board is an essential asset for developers looking to harness the full potential of the MCP23008 and MCP23S08 I/O expanders.
