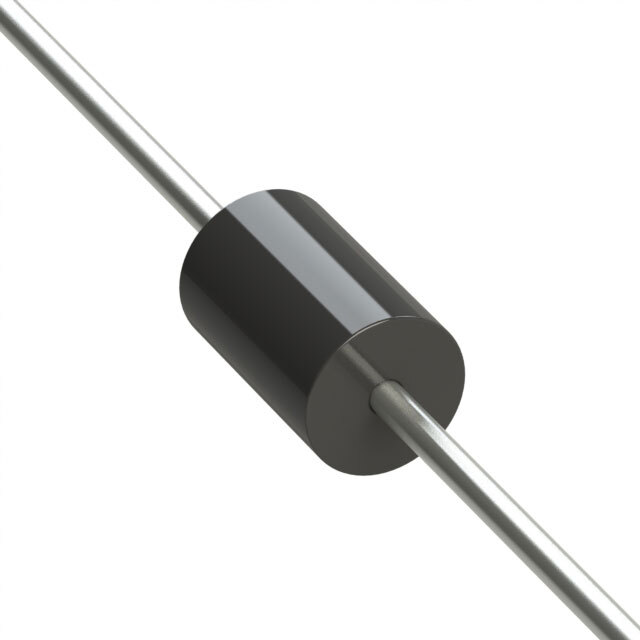

Same model may have multiple batches, images only for reference.
M15KP40CAE3/TR Microchip Technology – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

M15KP40CAE3/TR

Part No M15KP40CAE3/TR
Manufacturer Microchip Technology
Catalog TVS - Diodes
Description TVS DIODE 40VWM 65.8VC DO204AR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit ProtectionTransient Voltage Suppressors (TVS)TVS Diodes
Mfr Microchip Technology
Packaging Tape & Reel (TR)
Part Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 40V
Voltage - Breakdown (Min) 44.4V
Voltage - Clamping (Max) @ Ipp 65.8V
Current - Peak Pulse (10/1000μs) 228A
Power - Peak Pulse 15000W (15kW)
Power Line Protection No
Applications General Purpose
Operating Temperature -65°C ~ 150°C (TJ)
Grade Military
Qualification MIL-PRF-19500
Mounting Type Through Hole
Package / Case DO-204AR, Axial
Supplier Device Package DO-204AR
Base Product Number M15KP
Ultra Librarian 3D Model Ultra Librarian M15KP40CAE3/TR CAD Model
