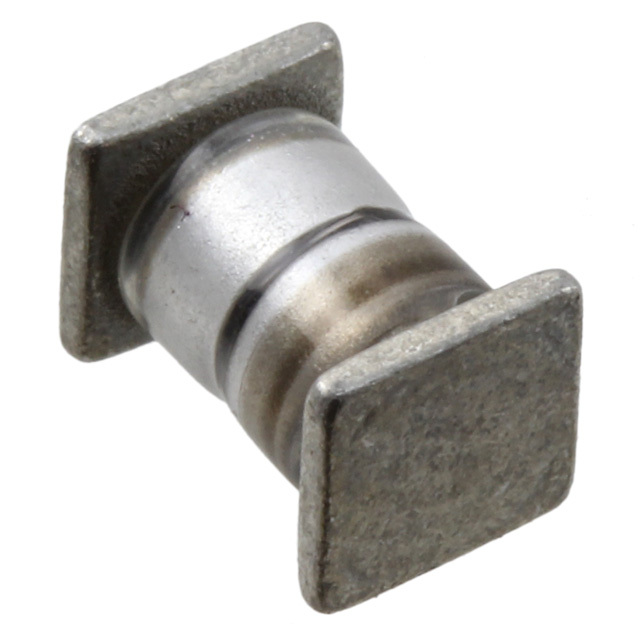

JANTX1N6166A

Part No JANTX1N6166A
Manufacturer Microchip Technology
Catalog TVS - Diodes
Description TVS DIODE 76VWM 137.6VC C AXIAL
Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 76V
Voltage - Breakdown (Min) 95V
Voltage - Clamping (Max) @ Ipp 137.6V
Current - Peak Pulse (10/1000µs) 10.9A
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C (TJ)
Grade Military
Qualification MIL-PRF-19500/516
Mounting Type Through Hole
Case / Package G, Axial
Supplier Device Package C, Axial
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1608250-JANTX1N6166A
Ultra Librarian 3D Model Ultra Librarian JANTX1N6166A CAD Model

Description

N
