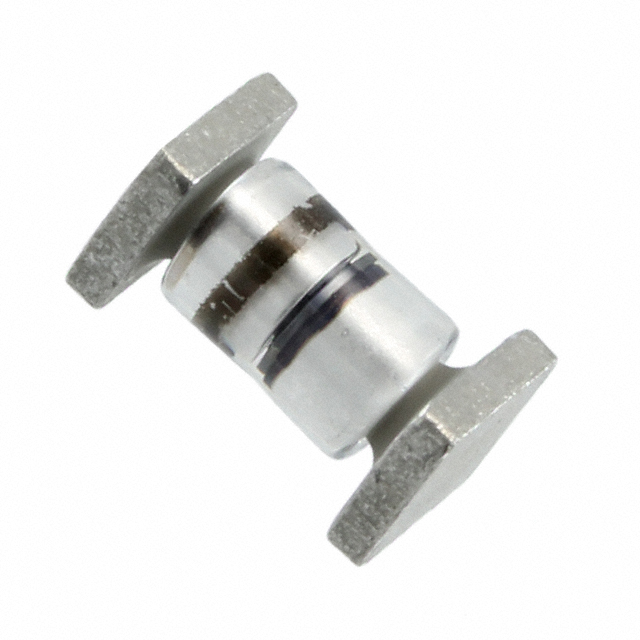

Same model may have multiple batches, images only for reference.
JANTX1N5617US Microchip Technology – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

JANTX1N5617US

Part No JANTX1N5617US
Manufacturer Microchip Technology
Catalog Diodes, Rectifiers - Single
Description DIODE STANDARD 400V 1A D5A
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Technology Standard
Voltage - DC Reverse (Vr) (Max) 400 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.6 V @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 150 ns
Current - Reverse Leakage @ Vr 500 µA @ 400 V
Capacitance @ Vr, F 35pF @ 12V, 1MHz
Grade Military
Qualification MIL-PRF-19500/429
Mounting Type Surface Mount
Case / Package SQ-MELF, A
Supplier Device Package D-5A
Operating Temperature - Junction -65°C ~ 175°C
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1491943-JANTX1N5617US
Ultra Librarian 3D Model Ultra Librarian JANTX1N5617US CAD Model
