Microchip Technology's EMC1404-1-AIZL-TR Temperature Sensor

The EMC1404-1-AIZL-TR is a high-precision, low-power temperature sensor from the reputable Microchip Technology, designed for efficient thermal management within electronic systems. This sensor is a part of Microchip's robust portfolio of thermal management solutions that cater to a wide range of applications, including personal computers, office electronics, and telecommunication devices.

Featuring a tri-channel temperature monitoring capability, the EMC1404-1-AIZL-TR can measure temperature from one internal sensor and two external diode-connected transistors, which are typically used to monitor the temperature of CPU die or other high-temperature integrated circuits. This multi-channel approach allows for comprehensive thermal data, enabling systems to make intelligent decisions based on multiple temperature readings.

One of the key attributes of this product is its high accuracy, with an internal sensor accuracy of ±1°C and an external sensor accuracy of ±3°C over the temperature range of -40°C to +125°C. Such precision is critical for maintaining optimal performance and preventing overheating in sensitive electronic components.

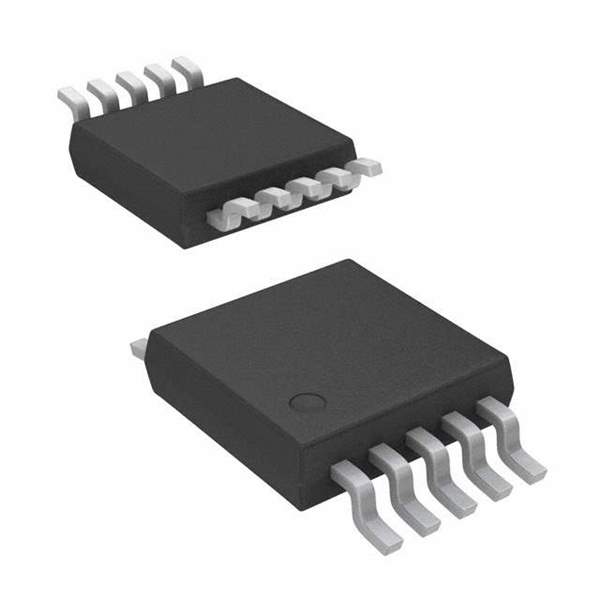

Moreover, the EMC1404-1-AIZL-TR operates on a low supply voltage, ranging from 3.0V to 3.6V, which makes it suitable for battery-powered devices where power conservation is paramount. Its small form factor, available in a 10-pin MSOP (Mini Small Outline Package), ensures that it can be integrated into space-constrained designs without hassle.

Communication with the sensor is facilitated via a 2-wire SMBus (System Management Bus) interface, which is compatible with the majority of I²C interfaces, providing ease of integration into existing designs. Additionally, the EMC1404-1-AIZL-TR offers programmable alarm outputs, which can trigger system responses when temperatures exceed predefined thresholds, thus ensuring protective measures are taken before any potential thermal damage occurs.

With its combination of precision, low power consumption, and compact size, the EMC1404-1-AIZL-TR from Microchip Technology stands out as an excellent choice for designers looking to incorporate reliable thermal monitoring into their systems.
