Microchip Technology's DSC6021MI2A-00A2: A Compact and Efficient MEMS Oscillator

The DSC6021MI2A-00A2 is a cutting-edge MEMS (Micro-Electro-Mechanical Systems) oscillator developed by Microchip Technology, a leader in the field of smart, connected, and secure embedded control solutions. This miniature, low-power oscillator is designed to meet the demanding requirements of modern electronic devices, offering a perfect blend of performance, reliability, and energy efficiency.

Key Features

• Frequency Range: The DSC6021 series operates at a frequency of 2.048 MHz, providing a stable timing solution for a wide range of applications.
• Supply Voltage: It supports a supply voltage range of 1.71V to 3.63V, making it versatile for various power environments and battery-operated devices.
• Low Power Consumption: With an active mode current of 2.0 mA and a standby current of 4 µA, this oscillator is designed for power-sensitive applications.

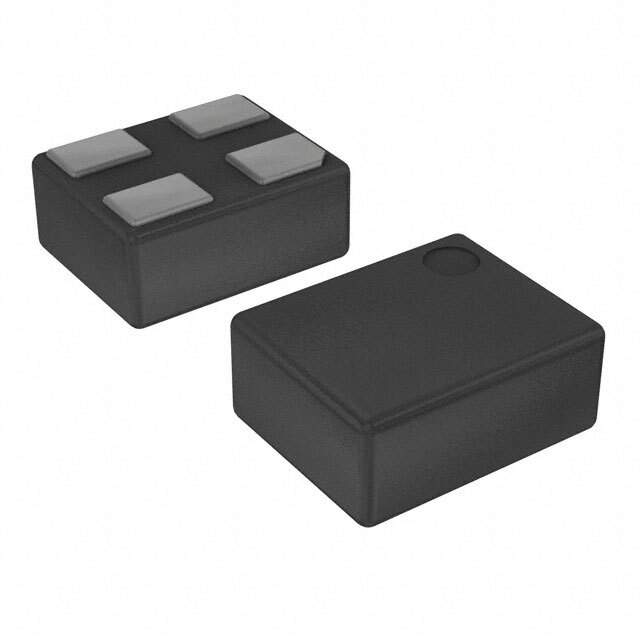

• Compact Footprint: Housed in a 4-SMD, no lead package, it has a tiny footprint of 2.5 mm x 2.0 mm, saving valuable board space in compact electronic designs.
• Temperature Stability: The device offers excellent temperature stability, ensuring consistent performance across a wide temperature range.
• Output Type: It provides a CMOS output, which is compatible with most digital circuits, facilitating easy integration into a variety of designs.

Applications

The DSC6021MI2A-00A2 is ideal for use in a multitude of applications where space and power are at a premium. It is particularly well-suited for:

• Portable and wearable technology
• Internet of Things (IoT) devices
• Industrial automation and control systems
• Consumer electronics
• Healthcare and medical devices

Advantages of MEMS Technology

MEMS oscillators like the DSC6021MI2A-00A2 offer several advantages over traditional quartz crystal oscillators. They are more resistant to shock and vibration, provide better reliability and longevity, and enable smaller device form factors. Additionally, MEMS oscillators have shorter lead times and are more environmentally friendly due to their RoHS compliance.

With its robust feature set and adherence to Microchip's stringent quality standards, the DSC6021MI2A-00A2 oscillator is an excellent choice for designers looking to optimize their products for performance and efficiency.
