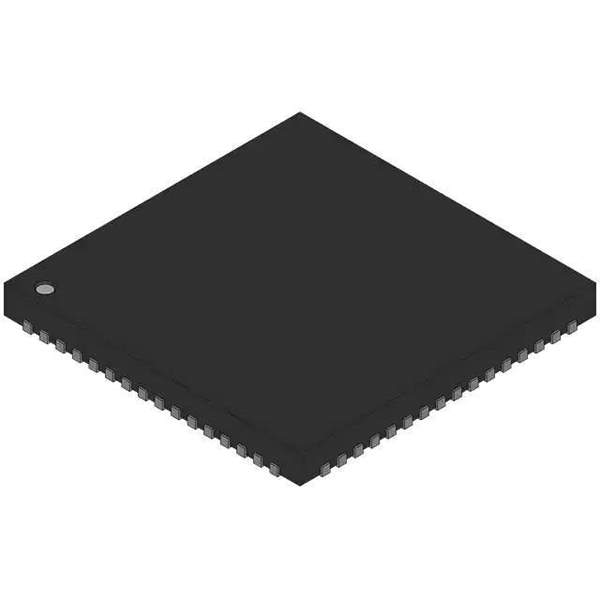

The ATMEGA169-16MU is a powerful microcontroller from Microchip Technology, renowned for its high performance, low power consumption, and versatile features. This device is a member of the popular AVR® series, which is well-suited for a wide range of applications in the industrial, automotive, and consumer electronics sectors.
Key Features:
-
Advanced RISC Architecture: The ATMEGA169-16MU boasts a 16 MHz advanced RISC processor, providing a perfect balance between power consumption and processing speed. Its efficient instruction set ensures maximum throughput and supports complex functions with minimal clock cycles.
-
Memory: This microcontroller comes with 16KB of in-system self-programmable flash memory, 512 Bytes EEPROM, and 1KB SRAM. This ample memory capacity allows for robust application development and data storage without the need for external memory components.
-

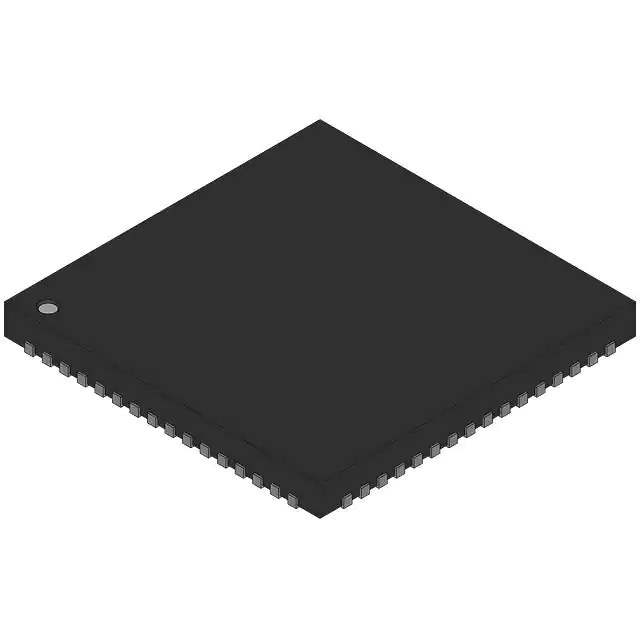

I/O and Packages: It features 53 general-purpose I/O lines, 32 general-purpose working registers, a real-time counter, four flexible timer/counters with compare modes, and two USARTs. The device is available in a 64-pad QFN/MLF package, which is ideal for space-constrained applications.
-
Power Efficiency: With multiple power-saving modes, such as Idle, ADC Noise Reduction, Power-save, Power-down, and Standby, the ATMEGA169-16MU ensures optimal power efficiency, making it suitable for battery-operated devices.
-
Analog Features: The microcontroller includes an 8-channel, 10-bit ADC, differential channels with programmable gain, and an internal temperature sensor, enhancing its utility in sensor-based systems.
-
Peripheral Features: On-chip peripherals include a programmable watchdog timer with internal oscillator, an SPI serial port, and a byte-oriented 2-wire serial interface, providing a multitude of communication options.
Applications:
The versatility of the ATMEGA169-16MU makes it an excellent choice for a variety of applications, such as smart control systems, home automation, battery management, handheld instruments, and IoT devices. Its robust feature set enables developers to create sophisticated systems with a single, compact microcontroller.
In summary, the ATMEGA169-16MU from Microchip Technology is a feature-rich, high-performance microcontroller that offers designers a flexible and efficient solution for their embedded system needs.
