Same model may have multiple batches, images only for reference.

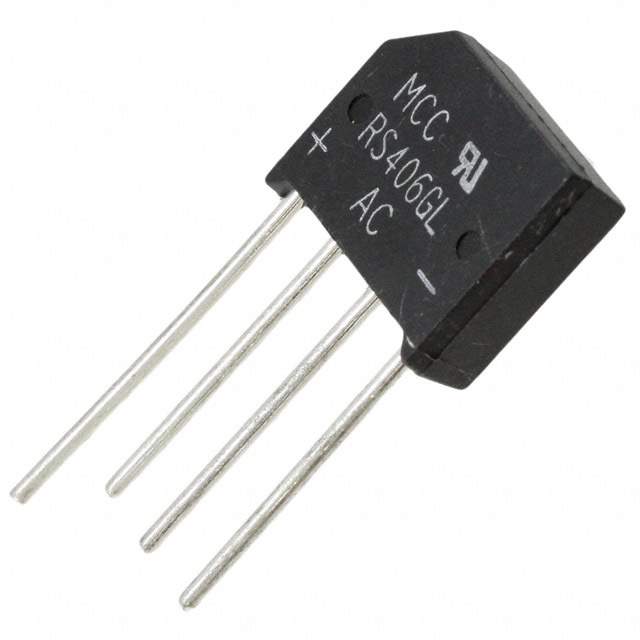

RS406GL-BP Real Image
Same model may have multiple batches, images only for reference.

RS406GL-BP

Part No RS406GL-BP
Manufacturer Micro Commercial Co
Catalog Bridge Rectifiers
Description IC BRIDGE RECT GPP 4A 800V RS-4L
Datasheet
RS406GL-BP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Bulk
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 800V
Current - Average Rectified (Io) 4A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 4A
Current - Reverse Leakage @ Vr 5μA @ 800V
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting Through Hole
Case / Package RS-4L
Win Source Part Number 1092744-RS406GL-BP
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian RS406GL-BP CAD Model

Description

The Micro Commercial Co RS406GL-BP is a single phase diode with a maximum peak reverse voltage of 800V and an average rectified current of 4A.

  • Phase: Single
  • Maximum Peak Reverse Voltage: 800V
  • Average Rectified Current: 4A
  • Forward Voltage: 1.1V @ 4A
  • Reverse Leakage Current: 5μA @ 800V
  • Operating Temperature Range: -55°C to 125°C
  • Package: RS-4L
  • Packaging: Bulk
  • Applications: Power supplies, rectifiers, and battery chargers
