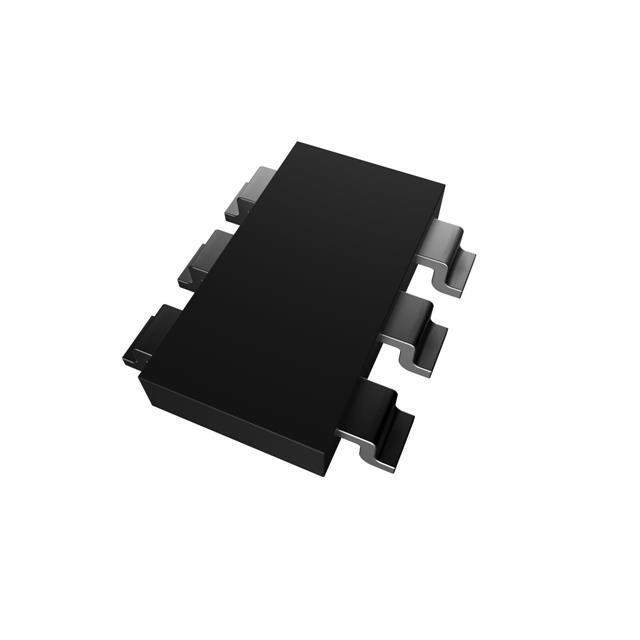

MMBD4448HSDW-TP Real Image
Same model may have multiple batches, images only for reference.

MMBD4448HSDW-TP

Part No MMBD4448HSDW-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 80V 250MA SOT363 / Diode Array 2 Pair Series Connection Standard 80 V 250mA Surface Mount 6-TSSOP, SC-88, SOT-363
Datasheet
MMBD4448HSDW-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Micro Commercial Co
Package Tape & Reel
Diode Configuration 2 Pair Series Connection
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 80 V
Current - Average Rectified (Io) (per Diode) 250mA
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 150 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 4 ns
Current - Reverse Leakage @ Vr 100 nA @ 70 V
Operating Temperature - Junction 150°C (Max)
Mounting SMD (SMT)
Package / Case 6-TSSOP, SC-88, SOT-363
Supplier Device Package SOT-363
Base Product Number MMBD4448
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Names MMBD4448HSDWTP,-MMBD4448HSDW-TPCT,-MMBD4448HSDW-TPDKR,-MMBD4448HSDW-TPTR,MMBD4448HSDW-TPTR,MMBD4448HSDW-TPCT,MMBD4448HSDW-TPDKR
Standard Package 3,000
Win Source Part Number 961732-MMBD4448HSDW-TP
Ultra Librarian 3D Model Ultra Librarian MMBD4448HSDW-TP CAD Model

Description

The Micro Commercial Co MMBD4448HSDW-TP diode is a reliable and high-quality product that is suitable for various electronic applications.

  • Voltage - DC Reverse (Vr) (max): 80V
  • Voltage - Forward (Vf) (max) @ If: 1.25V @ 150mA
  • Reverse Recovery Time (trr): 4ns
  • Current - Reverse Leakage @ Vr: 100nA @ 70V
  • Operating Temperature - Junction: 150°C (max)
  • Diode Configuration: 2 pair series connection
  • Current - Average Rectified (Io) (per diode): 250mA
  • Package/Case: SOT-363
  • Supplier Device Package: SOT-363
  • Alternative Parts (Cross-Reference): MDB10S, BAV99DW-7-F, MMBD4448DW-7-F, BAS16HTWQ-13, MMBD4448DW-TP, BAT54TW-TP, BAS40TW-TP
  • MSL Level: 1 (unlimited)
  • REACH Status: REACH unaffected
  • HTSUS: 8541.10.0070
