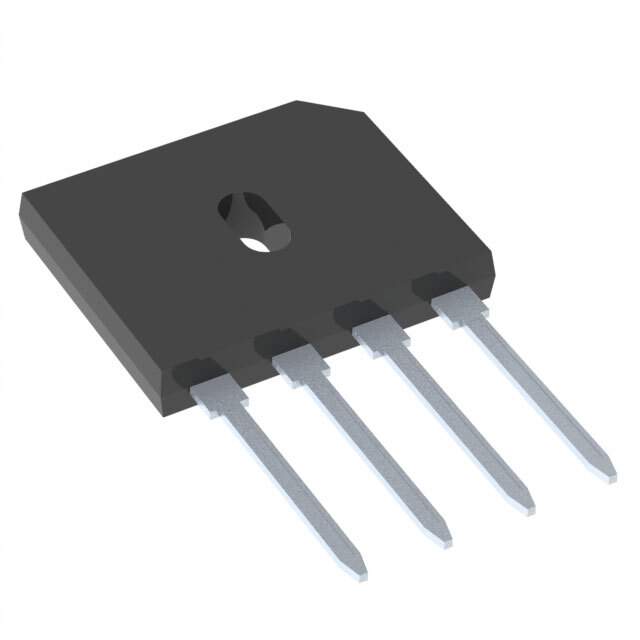

GBU15M-BP Real Image
Same model may have multiple batches, images only for reference.

GBU15M-BP

Part No GBU15M-BP
Manufacturer Micro Commercial Co
Catalog Bridge Rectifiers
Description BRIDGE RECTIFIER 15A 1000V GBU
Datasheet
GBU15M-BP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Tube/Rail
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1000V
Current - Average Rectified (Io) 15A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 7.5A
Current - Reverse Leakage @ Vr 5μA @ 1000V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package GBU
Win Source Part Number 1040869-GBU15M-BP
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian GBU15M-BP CAD Model

Description

The Micro Commercial Co GBU15M-BP is a single-phase standard rectifier diode.

  • Mounting Type: Through Hole
  • Package: GBU
  • Current Average Rectified (Io): 15A
  • Voltage Forward (Vf) (Max) @ If: 1.1V @ 7.5A
  • Current Reverse Leakage @ Vr: 5μA @ 1000V
  • Voltage Peak Reverse (Max): 1000V
  • Temperature Range: -55°C to 150°C (TJ)
  • Supply and Demand Status: Balance
  • Fake Devices in Open Market: 31%
  • Package Quantity: 1k pcs per package
