DL4746A-TP
Same model may have multiple batches, images only for reference.

DL4746A-TP

Part No DL4746A-TP
Manufacturer Micro Commercial Co
Catalog Diodes - Zener - Single
Description DIODE ZENER 18V 1W MELF / Zener Diode 18 V 1 W ±5% Surface Mount MELF
Datasheet
DL4746A-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr Micro Commercial Co
Package Tape & Reel
Product Status Obsolete
Voltage - Zener (Nom) (Vz) 18 V
Tolerance ±5%
Power - Max 1 W
Impedance (Max) (Zzt) 20 Ohms
Current - Reverse Leakage @ Vr 5 µA @ 13.7 V
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 200 mA
Temperature Range - Operating -65°C ~ 175°C
Mounting Type Surface Mount

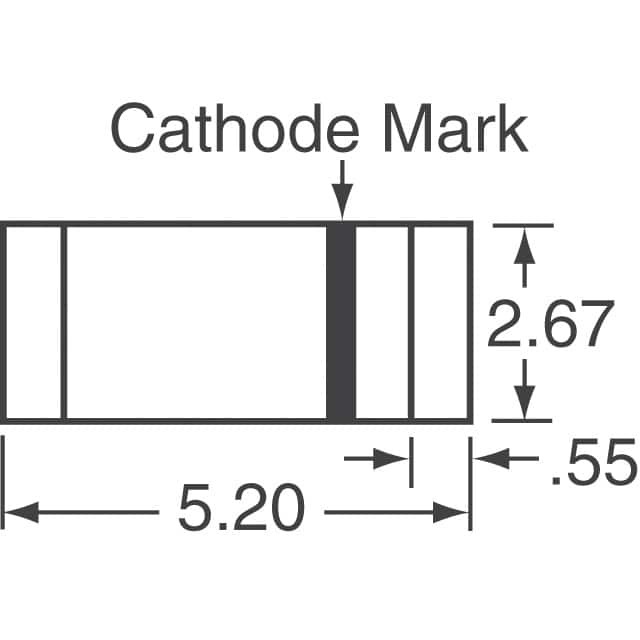

Package / Case DO-213AB, MELF
Supplier Device Package MELF
Base Product Number DL4746
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Win Source Part Number 868815-DL4746A-TP
Ultra Librarian 3D Model Ultra Librarian DL4746A-TP CAD Model

Description

The 868815-DL4746A-TP is a single zener diode designed for voltage regulation applications.

  • Product Name: 868815-DL4746A-TP
  • Type: Single Zener Diode
  • Application: Voltage Regulation
  • Power Dissipation: 1W
  • Forward Voltage: 1.2V @ 200mA
  • Reverse Leakage Current: 5µA @ 13.7V
  • Zener Voltage: 18V
  • Voltage Tolerance: ±5%
  • Impedance: 20 Ohms
  • Mounting: Surface Mount
  • Package: DO-213AB (MELF)
  • Status: Obsolete
  • Manufacturer: Micro Commercial Co
