Same model may have multiple batches, images only for reference.

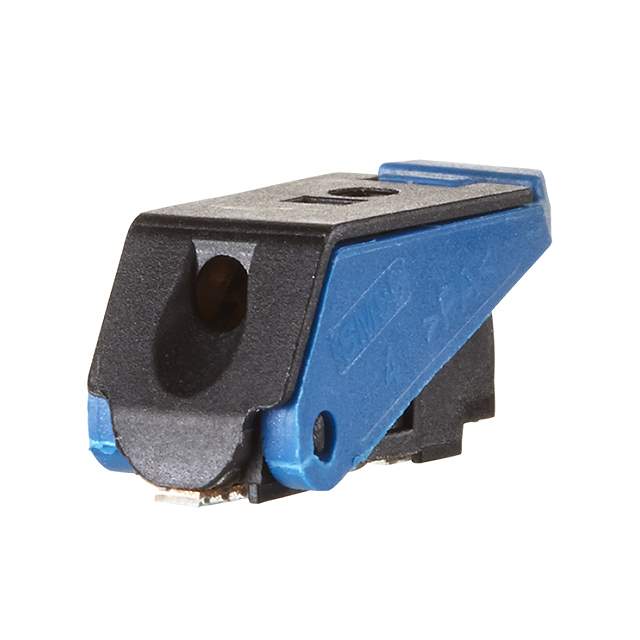

SM99S01VBNN05G7 Real Image
Same model may have multiple batches, images only for reference.

SM99S01VBNN05G7

Part No SM99S01VBNN05G7
Manufacturer METZ CONNECT USA Inc.
Catalog Terminal Blocks
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks - Wire to Board
Mfr METZ CONNECT USA Inc.
Package Tape & Reel
Number of Levels 1
Positions Per Level 1
Mating Orientation Horizontal with Board
Current 9 A
Voltage 300 V
Wire Gauge 16-24 AWG
Mounting SMD (SMT)
Wire Termination Screwless - Spring Cage, Tension Clamp
Features Push Button Actuated
Color Blue
Temperature Range - Operating -40°C ~ 105°C
Housing Material Polyamide (PA6T), Nylon 6T
Contact Material - Plating Copper Alloy - Tin Plated
Clamp Material - Plating Steel
Base Product Number SM99S01VB
Other Names 1849-1156-2,1849-1156-1,1849-1156-6
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1285209-SM99S01VBNN05G7
Ultra Librarian 3D Model Ultra Librarian SM99S01VBNN05G7 CAD Model

Description

The METZ CONNECT USA Inc. SM99S01VB is a wire-to-board terminal block connector.

  • Color: blue
  • Wire Gauge: 16-24 AWG
  • Voltage Rating: 300V
  • Current Rating: 9A
  • Housing Material: polyamide (PA6T) and nylon 6T
  • Wire Termination: screwless-spring cage and tension clamp
  • Contact Material-Plating: copper alloy-tin plated
  • Clamp Material-Plating: steel
  • Feature: push button actuated
  • Package: tape and reel
  • Standard Package: 1,000
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
