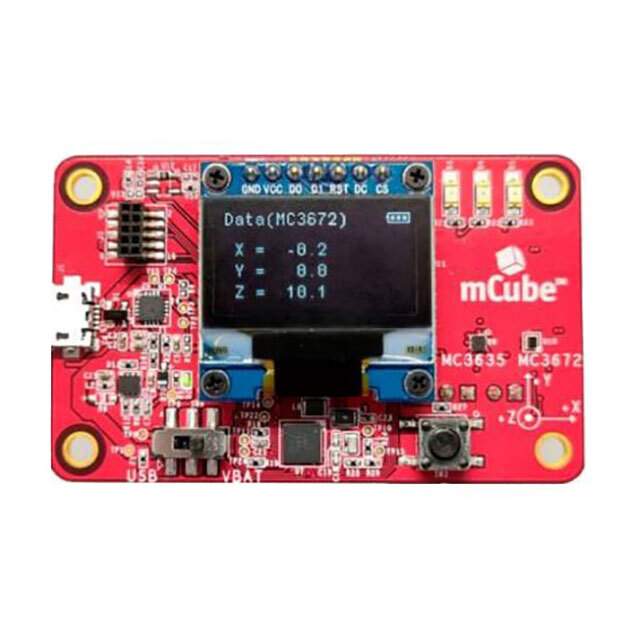

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - Sensors
Mfr Memsic Inc.
Package Box
Sensor Type Accelerometer, 3 Axis
Sensing Range ±2g, 4g, 8g, 12g, 16g
Interface I2C, Serial, SPI
Voltage - Supply 1.7V ~ 3.6V
Supplied Contents Board(s)
Utilized IC / Part MC3635, MC3672
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Other Names 2548-DB3672B
Standard Package 1
Win Source Part Number 1183256-DB3672B
Ultra Librarian 3D Model Ultra Librarian DB3672B CAD Model

Description

The DB3672B is an evaluation board for the MC3635 and MC3672 accelerometers from Memsic Inc.

  • Function: Development Board
  • Accelerometers: MC3635 and MC3672
  • Sensing Range: ±2g, 4g, 8g, 12g, 16g
  • Interface: I2C, Serial, SPI
  • ICs Included: MC3635 and MC3672
  • Embedded: No
  • Voltage Supply: 1.7V to 3.6V
  • Package: Box
  • Standard Package: 1
  • ECCN: EAR99
  • REACH Affected: No
  • HTSUS: 8473.30.1180
