Same model may have multiple batches, images only for reference.

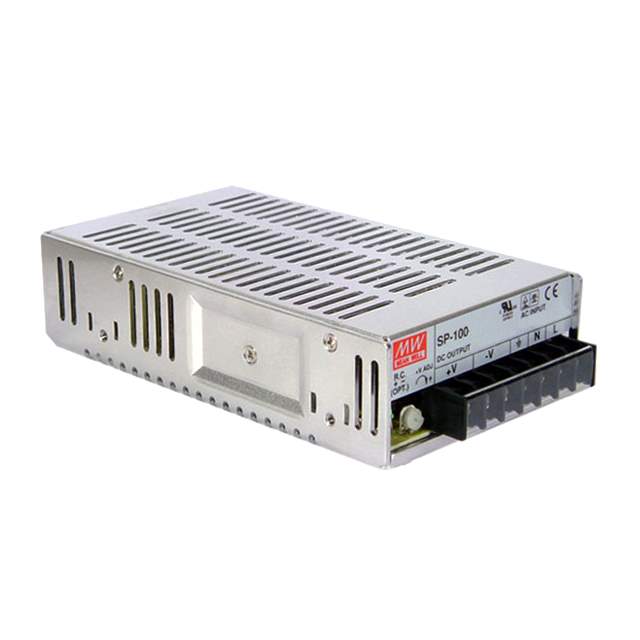

SP-100-7.5 Real Image
Same model may have multiple batches, images only for reference.

SP-100-7.5

Part No SP-100-7.5
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 7.5V 101W / Enclosed AC DC Converters 1 Output 7.5V 85 ~ 264 VAC, 120 ~ 370 VDC Input
Datasheet
SP-100-7.5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr MEAN WELL USA Inc.
Series SP-100 (100W)
Package Box
Product Status Obsolete
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 7.5V
Current - Output 1 13.5 A
Power (Watts) 101W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 82%
Temperature Range - Operating -10°C ~ 60°C (With Derating)
Features Adjustable Output, PFC, Remote On/Off, Universal Input
Mounting Type Chassis Mount
Dimension 7.05" L x 3.90" W x 1.77" H (179.0mm x 99.0mm x 45.0mm)
Approval Agency CB, CE, cURus, TUV
Minimum Load Required No
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9520
Standard Package 1
Win Source Part Number 1024974-SP-100-7.5
Ultra Librarian 3D Model Ultra Librarian SP-100-7.5 CAD Model

Description

The SP-100-7.5 is a power supply from MEAN WELL USA Inc.

  • Output Power: 101W
  • Efficiency: 82%
  • Features: Adjustable Output, PFC, Remote On/Off, Universal Input
  • Package: Enclosed Box
  • Application: ITE (Commercial)
  • Voltage Input: 85 ~ 264 VAC and 120 ~ 370 VDC
  • Voltage Isolation: 3 kV
  • Output Voltage: 7.5V
  • Current Output: 13.5A
  • Minimum Load: None
  • Mounting Type: Chassis Mount
  • Operating Temperature Range: -10°C ~ 60°C (With Derating)
  • Dimensions: 7.05" L x 3.90" W x 1.77" H (179.0mm x 99.0mm x 45.0mm)
  • Status: Obsolete
  • Approval Agency: CB, CE, cURus, and TUV
