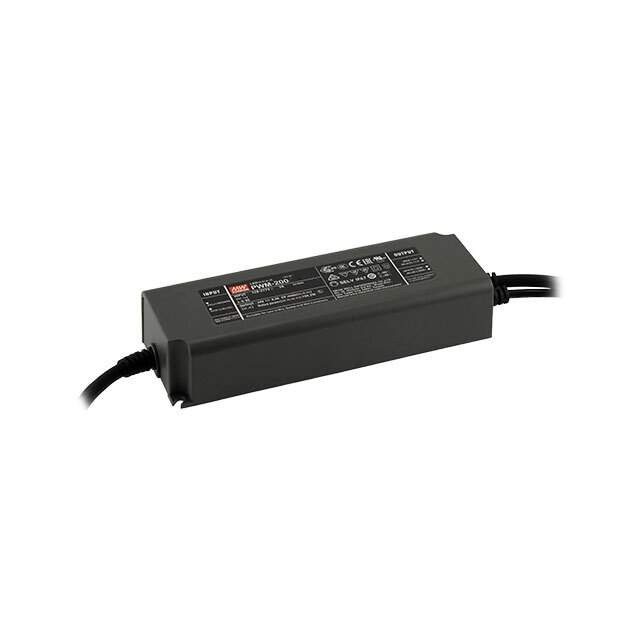

PWM-200-48 Real Image
Same model may have multiple batches, images only for reference.

PWM-200-48

Part No PWM-200-48
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description 200W CLASS II & IP67 POWER SUPPL / 4.17A 48V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>LED Drivers
Mfr MEAN WELL USA Inc.
Series PWM-200 (200W)
Package Box
Type Constant Current, Voltage
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 100VAC
Voltage - Input (Max) 305VAC
Voltage - Output 48V
Current - Output (Max) 4.17A
Power (Watts) 200 W
Voltage - Isolation 3.75 kV
Dimming Analog, PWM
Features OTP, OVP, SCP
Ratings IP67, NEMA 410
Temperature Range - Operating -40°C ~ 85°C
Efficiency 94%
Termination Style Wire Leads
Dimension 7.68" L x 2.68" W x 1.56" H (195.0mm x 68.0mm x 39.5mm)
Approval Agency CB, CCC, CE, cURus, EAC, ENEC
Standard Number 60335-1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9530
Other Names 1866-PWM-200-48
Standard Package 12
Win Source Part Number 1086433-PWM-200-48
Ultra Librarian 3D Model Ultra Librarian PWM-200-48 CAD Model

Description

The PWM-200 (200W) is a constant current/voltage LED driver that provides OTP, OVP, and SCP features.

  • Features: OTP, OVP, and SCP
  • Termination Style: Wire leads
  • Package: Box
  • Standard Package: 12
  • Ratings: IP67 and NEMA 410
  • Power Output: 200W
  • Voltage Output: 48V
  • Isolation: 3.75kV
  • Number of Outputs: 1
  • Maximum Output Current: 4.17A
  • Voltage Input Range: 100VAC to 305VAC
  • Dimming: Analog or PWM
  • Efficiency: 94%
  • Operating Temperature: -40°C to 85°C
  • Dimensions: 7.68" L x 2.68" W x 1.56" H (195.0mm x 68.0mm x 39.5mm)
  • Approvals: CB, CCC, CE, cURus, EAC, and ENEC
