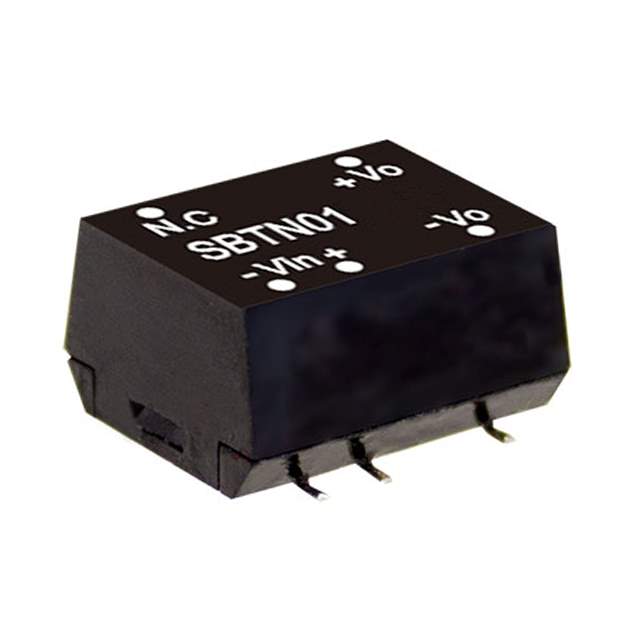

SBTN01L-05 Real Image
Same model may have multiple batches, images only for reference.

SBTN01L-05

Part No SBTN01L-05
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Datasheet
SBTN01L-05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MEAN WELL USA Inc.
Series SBTN01 (1W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 90°C (With Derating)
Efficiency 78%
Mounting Type Surface Mount
Package / Case 8-SMD Module, 5 Leads
Size / Dimension 0.51" L x 0.43" W x 0.28" H (12.9mm x 10.9mm x 7.1mm)
Base Product Number SBTN01
Standard Package 4,560
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1350630-SBTN01L-05
Ultra Librarian 3D Model Ultra Librarian SBTN01L-05 CAD Model

Description

The SBTN01L-05 is a 1W isolated module power supply from the SBTN01 series.

  • Power (Watts): 1W
  • Series: SBTN01
  • Current - Output (Max): 200mA
  • Efficiency: 78%
  • Package: Tube
  • Size / Dimension: 0.51" L x 0.43" W x 0.28" H (12.9mm x 10.9mm x 7.1mm)
  • Voltage - Input: 4.5V ~ 5.5V
  • Voltage - Output: 5V
  • Number of Outputs: 1
  • Mounting Type: Surface Mount
  • Package / Case: 8-SMD Module, 5 Leads
  • Standard Package: 4,560
  • Operating Temperature: -40°C ~ 90°C (with derating)
  • Mfr: MEAN WELL USA Inc.
  • Base Product Number: SBTN01
