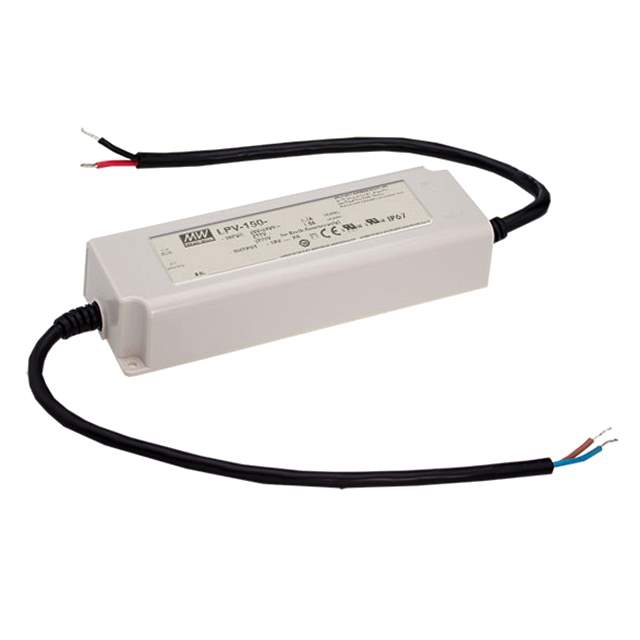

LPV-150-24 Real Image
Same model may have multiple batches, images only for reference.

LPV-150-24

Part No LPV-150-24
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description LED DRIVER CV AC/DC 24V 6.3A / 6.3A 24V Constant Voltage LED Driver AC DC Converter Topology 1 Output
Datasheet
LPV-150-24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>LED Drivers
Mfr MEAN WELL USA Inc.
Series LPV-150 (150W)
Package Box
Type Constant Voltage
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 180VAC
Voltage - Input (Max) 305VAC
Voltage - Output 24V
Current - Output (Max) 6.3A
Power (Watts) 151 W
Voltage - Isolation 3 kV
Features OCP, OTP, OVP, SCP
Ratings IP67
Temperature Range - Operating -25°C ~ 65°C
Efficiency 89%
Termination Style Wire Leads
Dimension 7.52" L x 2.48" W x 1.48" H (191.0mm x 63.0mm x 37.5mm)
Approval Agency CE, cURus
Mounting Type Chassis Mount
Base Product Number LPV-150
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9530
Other Names LPV-150-24-ND,1866-3292
Standard Package 20
Win Source Part Number 1009602-LPV-150-24
Ultra Librarian 3D Model Ultra Librarian LPV-150-24 CAD Model

Description

The MEAN WELL USA Inc. LPV-150-24 is a high-quality LED driver that comes with a power of 151W and a voltage output of 24V. Bold product name: LPV-150-24 and Bold manufacturer: MEAN WELL USA Inc.

  • Power: 151W
  • Voltage Output: 24V
  • Type: Constant Voltage
  • Termination Style: Wire Leads
  • Protection: OCP, OTP, OVP, SCP
  • Application: LED Lighting
  • IP Rating: IP67
  • Package: Box
  • Standard Package: 20
  • Efficiency: 89%
  • Operating Temperature: -25°C to 65°C
  • Approvals: CE, cURus
