Same model may have multiple batches, images only for reference.

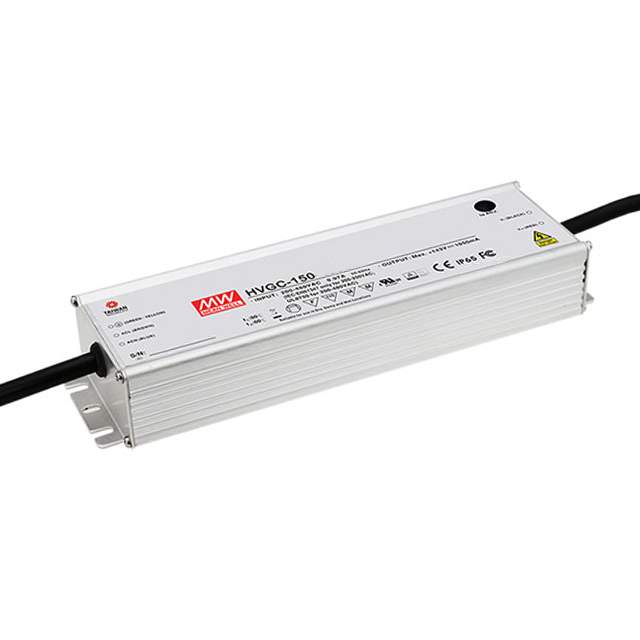

HVGC-150-500A Real Image
Same model may have multiple batches, images only for reference.

HVGC-150-500A

Part No HVGC-150-500A
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description LED DRVR CC AC/DC 30-300V 500MA / 500mA 30 ~ 300V Constant Current LED Driver AC DC Converter Topology 1 Output
Datasheet
HVGC-150-500A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>LED Drivers
Mfr MEAN WELL USA Inc.
Series HVGC-150 (150W)
Package Box
Type Constant Current
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 180VAC
Voltage - Input (Max) 528VAC
Voltage - Output 30 ~ 300V
Current - Output (Max) 500mA
Power (Watts) 150 W
Voltage - Isolation 3.75 kV
Features OTP, OVP, SCP
Ratings IP65
Temperature Range - Operating -40°C ~ 80°C
Efficiency 91%
Termination Style Wire Leads
Dimension 8.70" L x 2.68" W x 1.53" H (221.0mm x 68.0mm x 38.8mm)
Approval Agency CB, CE, cURus, TUV
Mounting Type Chassis Mount
Base Product Number HVGC-150
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9520
Other Names HVGC-150-500A-ND,1866-2878
Standard Package 12
Win Source Part Number 1060521-HVGC-150-500A
Ultra Librarian 3D Model Ultra Librarian HVGC-150-500A CAD Model

Description

The HVGC-150-500A is a constant current LED driver manufactured by MEAN WELL USA Inc. The product specification suggests that it is suitable for specific applications, although additional details are not provided.

  • Cross-Reference: S8JX-G15024CD, S8JX-G15024C, LS25-48, DPP15-24, LS10015, and S8VM01524C
  • Note: It is important to ensure that you purchase it from a reputable supplier to avoid the risk of fake products.
