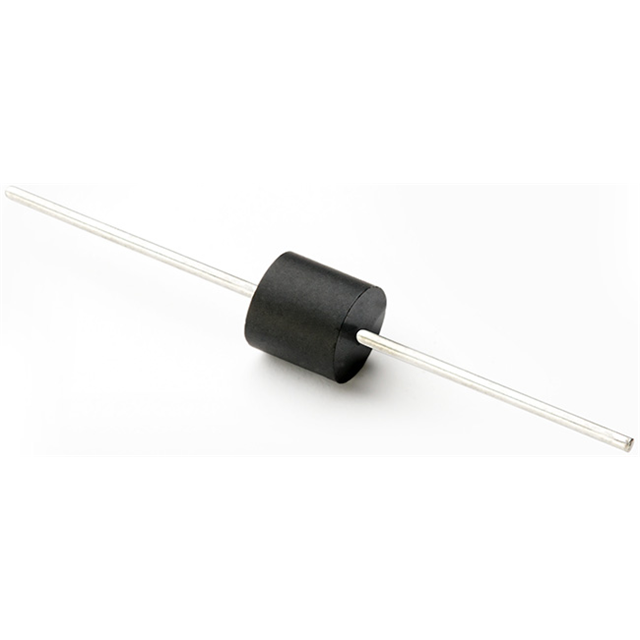

Same model may have multiple batches, images only for reference.

15KP36A

Name: 15KP36A
Brand: MDE Semiconductor, Inc.
SKU: 1380540
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	15KP36A
Manufacturer	MDE Semiconductor, Inc.
Catalog	TVS - Diodes
Description	TVS DIODE UP 36VRWM 59.8VC / 59.8V Clamp 252.5A Ipp Tvs Diode Through Hole P600
Datasheet	15KP36A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>Transient Voltage Suppressors (TVS)>TVS Diodes
Mfr	MDE Semiconductor, Inc.
Series	15KP
Package	Bulk
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	36V
Voltage - Breakdown (Min)	40.2V
Voltage - Clamping (Max) @ Ipp	59.8V
Current - Peak Pulse (10/1000µs)	252.5A
Power - Peak Pulse	15000W (15kW)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	P600, Axial
Supplier Device Package	P600
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH info available upon request
ECCN	EAR99
HTSUS	8541.10.0080
Standard Package	200 pcs
Win Source Part Number	1380540-15KP36A
Ultra Librarian 3D Model	Ultra Librarian 15KP36A CAD Model

Alternative Products

Description

The 1197677 is a TVS diode from the 15KP series manufactured by MDE Semiconductor, Inc.

Series: 15KP
Diode Type: Unidirectional
Voltage - Reverse Standoff (Typ): 36V
Voltage - Breakdown (Min): 40.2V
Voltage - Clamping (Max) @ Ipp: 59.8V @ 249.2A
Power - Peak Pulse: 15000W (15kW)
Applications: General Purpose
Operating Temperature: -55°C ~ 175°C (TJ)
Mounting Type: Through Hole
Package / Case: P600, Axial
Supplier Device Package: P600
Packaging: Bulk
Product Status: Active
