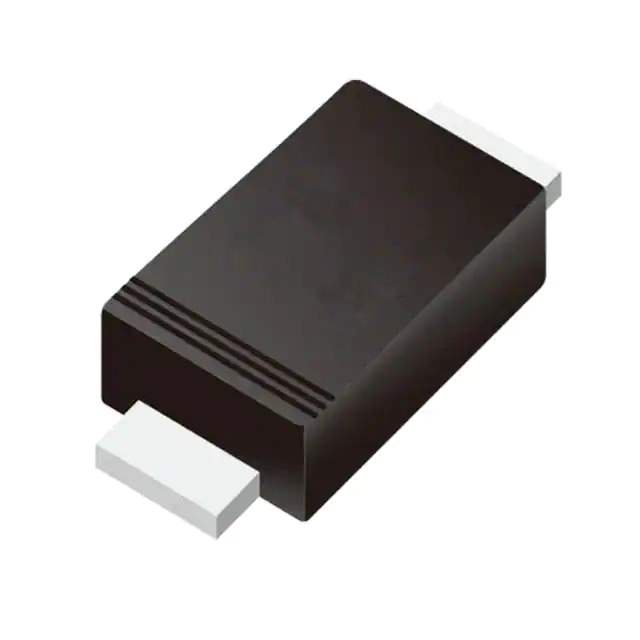

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SMAF
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 3A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 60 V
Capacitance @ Vr, F 180pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-221AC, SMA Flat Leads
Supplier Device Package SMAF
Operating Temperature - Junction -55°C ~ 150°C
Standard Package 6,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 676364-SS36F
Ultra Librarian 3D Model Ultra Librarian SS36F CAD Model

Description

The 676364-SS36F is a fast recovery Schottky diode designed for use in rectifier applications.

  • Maximum Reverse Voltage: 60V
  • Average Rectified Current: 3A
  • Recovery Time: less than 500ns
  • Forward Voltage Drop: less than 200mV @ 200mA
  • Package: DO-221AC, SMA Flat Leads
  • Capacitance: 180pF @ 4V and 1MHz
  • Operating Temperature: -55°C to 150°C
  • Product Category: Discrete Semiconductor Products
  • Application: Rectification
