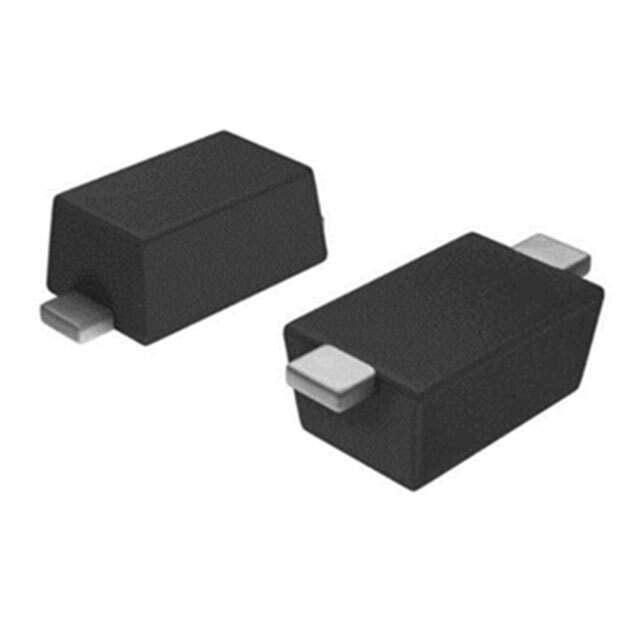

ESD5Z15V Real Image
Same model may have multiple batches, images only for reference.

ESD5Z15V

Part No ESD5Z15V
Manufacturer MDD
Catalog TVS - Diodes
Description TVS DIODE 15VWM 23VC SOD523  /  Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount SOD-523
Datasheet
ESD5Z15V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr MDD
Series SOD-523
Package Tape & Reel (TR)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 15V
Voltage - Breakdown (Min) 16V
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power - Peak Pulse 120W
Power Line Protection Yes
Applications General Purpose
Capacitance @ Frequency 28pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case SOD-523
Supplier Device Package SOD-523
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 3372-ESD5Z15VTR,SOD5235Z15VSZN
Standard Package 6,000
Win Source Part Number 1057911-ESD5Z15V
Ultra Librarian 3D Model Ultra Librarian ESD5Z15V CAD Model

Description

The MDD ESD5Z15V is a Zener diode that is used for general-purpose circuit protection.

  • Reverse Standoff Voltage: 15V
  • Breakdown Voltage: 16V
  • Power Rating: 120W
  • Peak Pulse Current: 1A (8/20μs)
  • Capacitance @ Frequency: 28pF @ 1MHz
  • Supplied: on tape & reel
  • Package: SOD-523
  • Operating Temperature Range: -55°C to 150°C
