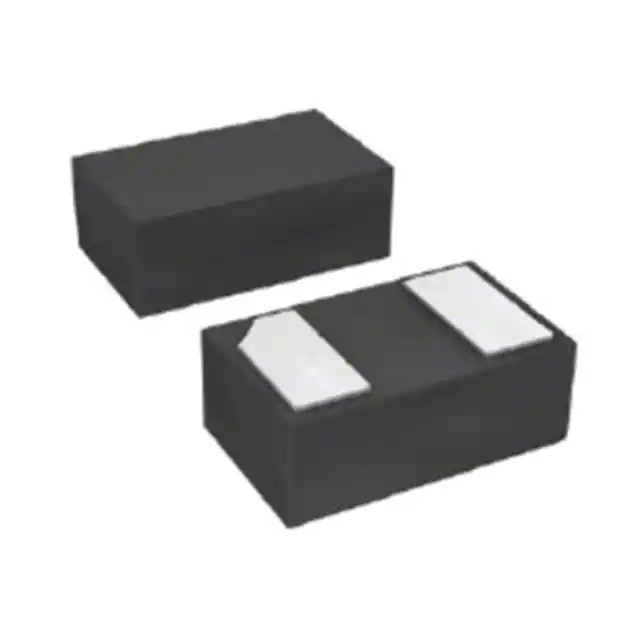

ESD0501L MDD
Same model may have multiple batches, images only for reference.

ESD0501L

Part No ESD0501L
Manufacturer MDD
Catalog TVS - Diodes
Description TVS DIODE 5VWM 15VC DFN1006 / Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount DFN1006
Datasheet
ESD0501L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr MDD
Series DFN1006
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 6V
Current - Peak Pulse (10/1000µs) 4A (8/20µs)
Power - Peak Pulse 60W
Power Line Protection Yes
Applications General Purpose
Capacitance @ Frequency 0.5pF @ 1MHz
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case DFN1006
Supplier Device Package DFN1006
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1362366-ESD0501L
Ultra Librarian 3D Model Ultra Librarian ESD0501L CAD Model

Description

The 1362366-ESD0501L is a unidirectional TVS diode designed for circuit protection against transient voltage events.

  • Diode Type: Zener
  • Reverse Standoff Voltage: 5V
  • Minimum Breakdown Voltage: 6V
  • Peak Pulse Current: 4A (10/1000µs)
  • Peak Power Rating: 60W
  • Power Line Protection: Yes
  • Capacitance: 0.5pF @ 1MHz
  • Series: DFN1006
  • Mounting Type: Surface Mount
  • Package: DFN1006
  • Operating Temperature: -55°C to 125°C (TJ)
  • REACH Status: Unaffected
  • ECCN: EAR99
