Same model may have multiple batches, images only for reference.

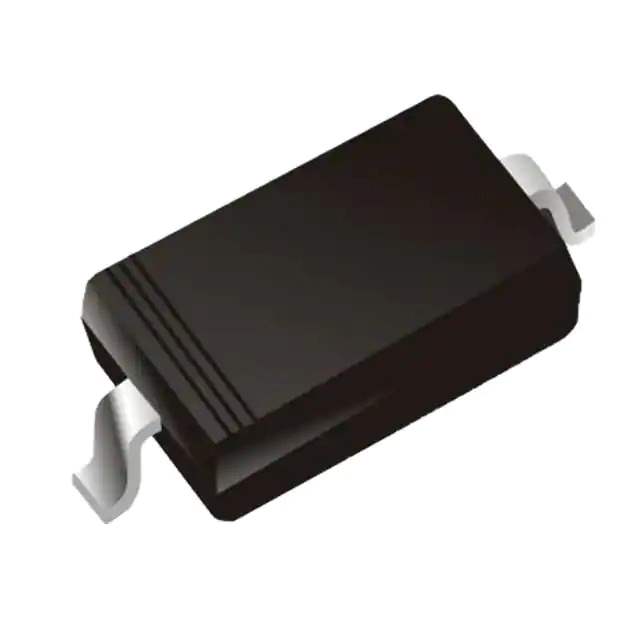

BZT52C7V5 Real Image
Same model may have multiple batches, images only for reference.

BZT52C7V5

Part No BZT52C7V5
Manufacturer MDD
Catalog Diodes - Zener - Single
Description Zener  SOD-123 7.5V +/-5%
Datasheet
BZT52C7V5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr MDD
Series SOD-123
Package Tape & Reel
Product Status Active
Tolerance ±5%
Power - Max 500 mW
Impedance (Max) (Zzt) 30 Ohms
Current - Reverse Leakage @ Vr 500 nA @ 4 V
Voltage - Forward (Vf) (Max) @ If 900 mV @ 10 mA
Temperature Range - Operating -65°C ~ 150°C
Mounting Type Surface Mount
Supplier Device Package SOD-123
Standard Package 12,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Win Source Part Number 574669-BZT52C7V5
Ultra Librarian 3D Model Ultra Librarian BZT52C7V5 CAD Model

Description

The 574669-BZT52C7V5 is a single Zener diode designed for various electronic applications.

  • Series: SOD-123
  • Packaging: Tape and Reel
  • Power Rating: 500mW
  • Forward Voltage: 900mV @ 10mA
  • Reverse Leakage Current: 500nA @ 4V
  • Impedance: 30 Ohms
  • Mounting Type: Surface Mount
  • Operating Temperature Range: -65°C to 150°C
