Same model may have multiple batches, images only for reference.

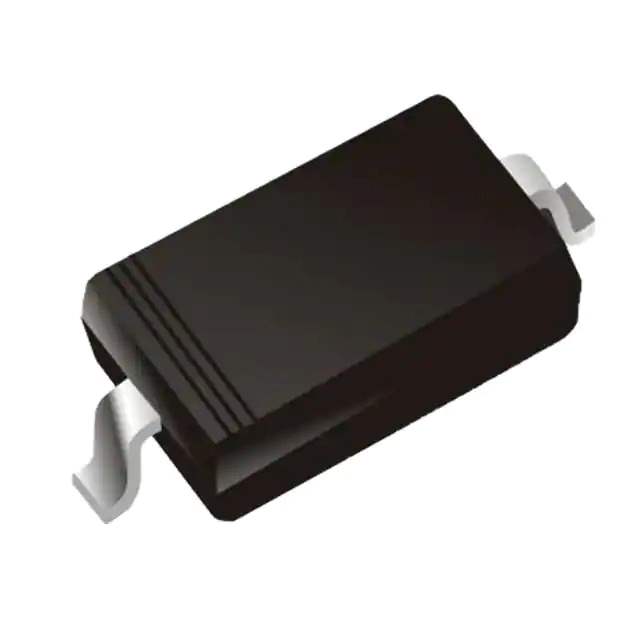

BZT52C2V4 Real Image
Same model may have multiple batches, images only for reference.

BZT52C2V4

Part No BZT52C2V4
Manufacturer MDD
Catalog Diodes - Zener - Single
Description Zener SOD-123 2.4V +/-5%
Datasheet
BZT52C2V4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr MDD
Series SOD-123
Package Tape & Reel
Product Status Active
Tolerance ±5%
Power - Max 500 mW
Impedance (Max) (Zzt) 100 Ohms
Current - Reverse Leakage @ Vr 120 µA @ 1 V
Voltage - Forward (Vf) (Max) @ If 900 mV @ 10 mA
Temperature Range - Operating -65°C ~ 150°C
Mounting Type Surface Mount
Supplier Device Package SOD-123
Standard Package 12,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Win Source Part Number 574607-BZT52C2V4
Ultra Librarian 3D Model Ultra Librarian BZT52C2V4 CAD Model

Description

The 574607-BZT52C2V4 is a single Zener diode in a SOD-123 package.

  • Maximum Power Dissipation: 500mW
  • Forward Voltage: 900mV @ 10mA
  • Reverse Leakage Current: 120µA @ 1V
  • Impedance: 100 Ohms
  • Mounting: surface mountable
  • Package: tape and reel
  • Operating Temperature Range: -65°C to 150°C
  • Category: Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
  • Status: active
