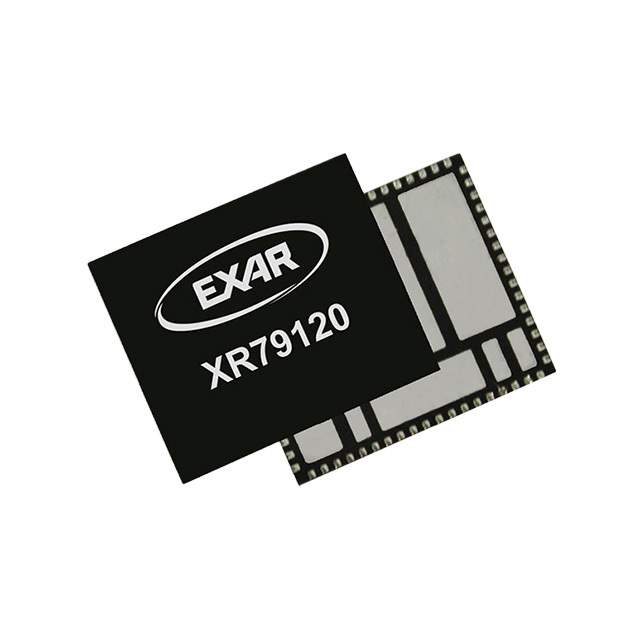

Same model may have multiple batches, images only for reference.

XR79120EL-F

Name: XR79120EL-F
Brand: MaxLinear Inc
SKU: 1237402
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	XR79120EL-F
Manufacturer	MaxLinear Inc
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 0.6-5.5V / Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.5V 20A 4.5V - 22V Input
Datasheet	XR79120EL-F Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	MaxLinear, Inc.
Package	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	22V
Voltage - Output 1	0.6 ~ 5.5V
Current - Output (Max)	20A
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 125°C
Efficiency	93%
Mounting	SMD (SMT)
Package / Case	74-PowerBQFN Module
Dimension	0.31" L x 0.31" W x 0.16" H (8.0mm x 8.0mm x 4.0mm)
Supplier Device Package	74-QFN (12x14)
Base Product Number	XR79120
Other Names	1016-2085
Standard Package	147
MSL Level	3 (168 Hours)
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	1237402-XR79120EL-F
Ultra Librarian 3D Model	Ultra Librarian XR79120EL-F CAD Model

Alternative Products

Description

The MaxLinear, Inc. XR79120EL-F is a non-isolated PoL module DC-DC converter that is perfect for ITE (Commercial) applications.

Maximum Output Current: 20A
Efficiency: 93%
Voltage Input Range: 4.5V to 22V
Voltage Output Range: 0.6 ~ 5.5V
Mounting: SMD (SMT)
Package Size: 74-PowerBQFN Module
Package Supply: Tray
Standard Package: 147
Temperature Range: -40°C to 125°C
Manufacturer: MaxLinear, Inc.
