Same model may have multiple batches, images only for reference.

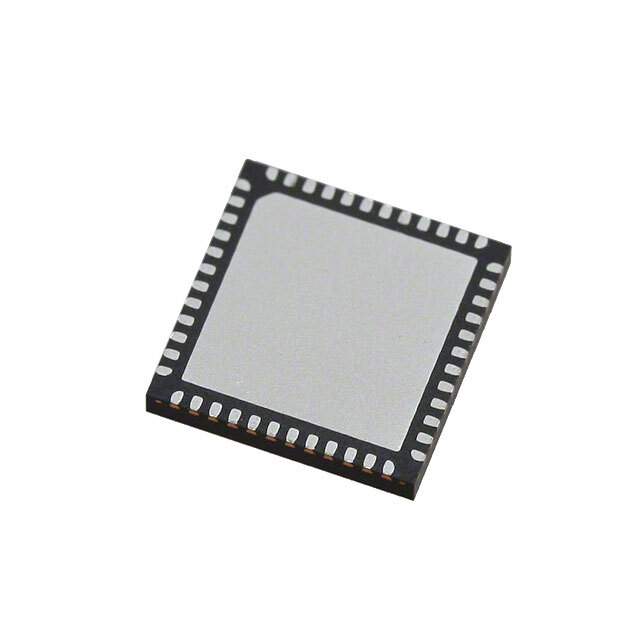

XR16V564IL-F Real Image
Same model may have multiple batches, images only for reference.

XR16V564IL-F

Part No XR16V564IL-F
Manufacturer MaxLinear Inc
Catalog Interface - UARTs (Universal Asynchronous Receiver Transmitter)
Description IC UART FIFO 32B QUAD 48QFN
Datasheet
XR16V564IL-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 25 Weeks
Features UART IC 4, QUART Channel RS232 32 Byte 48-QFN (7x7)
Manufacturer MaxLinear Inc
Package Tray
Mounting Surface Mount
Package 48-VFQFN Exposed Pad
Case / Package 48-QFN (7x7)
Family Name XR16V564
MSL Level 1 (Unlimited)
ECCN 5A991
HTSUS 8542.39.0001
Quantity per package 260
Popularity High
Supply and Demand Status Balance
Win Source Part Number 904058-XR16V564IL-F
Ultra Librarian 3D Model Ultra Librarian XR16V564IL-F CAD Model

Description

The MaxLinear Inc XR16V564IL-F is a UART IC with 4, quart channel RS232 and 32-byte in a 48-QFN (7x7) package.

  • Family: XR16V564
  • Category: Integrated Circuits (ICs)
  • ECCN: 5A991
  • Popularity: High
  • Supply and Demand Status: Balanced
  • Quantity per Package: 260
  • MSL Level: 1 (unlimited)
  • Estimated Production Lead Time: 25 weeks
  • HTSUS: 8542.39.0001
