Maxim Integrated MAXM17532AMB+T Step-Down DC-DC Converter

The Maxim Integrated MAXM17532AMB+T is a highly efficient, compact, step-down DC-DC power module that integrates a controller, MOSFETs, an inductor, and compensation components within a small system-in-package (SiP). This power solution is designed to simplify power supply design by reducing the number of external components required, thus saving board space and reducing time to market for a wide range of applications.

With an input voltage range of 4.0V to 42V, the MAXM17532AMB+T is capable of delivering up to 0.5A of continuous output current. This wide input range makes it suitable for various industrial, automotive, and communications applications where the input power source may fluctuate or be unregulated. Furthermore, the device can operate over a -40°C to +125°C temperature range, ensuring reliable performance in harsh environments.

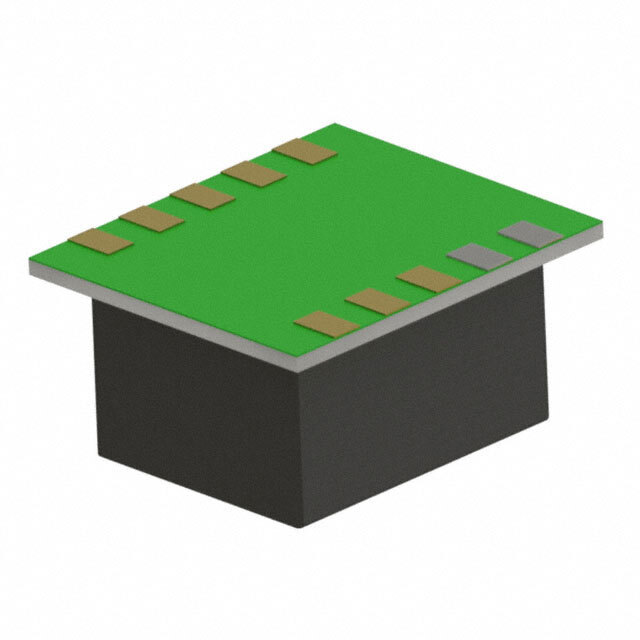

The MAXM17532AMB+T comes in a compact 10-pin, 2.6mm x 3.0mm x 1.5mm uSLIC™ package, which is designed to minimize electromagnetic interference (EMI) and maximize power density. This small footprint is particularly beneficial in space-constrained applications such as portable devices, IoT, and embedded systems.

Key features of the MAXM17532AMB+T include:

• Integrated Inductor
• High Efficiency: Up to 92%
• Adjustable Output Voltage from 0.9V up to 12V
• Peak Current Mode Control
• Overcurrent and Overtemperature Protection
• Low Quiescent Current
• Frequency Synchronization Input
• Power Good Output

With its peak current mode control, the MAXM17532AMB+T provides excellent transient response and eases loop stabilization. The device also features built-in protections such as overcurrent protection (OCP) and thermal shutdown to safeguard the system against fault conditions. Additionally, the power good (PG) output offers a simple way to monitor the health of the power supply.

Overall, the Maxim Integrated MAXM17532AMB+T is an ideal choice for designers looking for a high-efficiency, easy-to-use, and space-saving power management solution. Its robust feature set and integrated design enable a quick and reliable implementation for a wide array of applications.
