The MAX4968BEXB+ is a state-of-the-art, high-performance analog switch from Maxim Integrated, designed to deliver precision and reliability for a wide range of applications. This component is part of Maxim's commitment to providing innovative solutions that meet the needs of modern electronic systems.

Key Features

• High Bandwidth: The MAX4968BEXB+ offers a wide bandwidth, making it ideal for signal routing in high-speed data applications.
• Low On-Resistance: With its low on-resistance, this analog switch ensures minimal signal attenuation and power loss, enhancing overall system efficiency.
• Single +5V or Dual ±5V Supply: The device can operate on a single +5V supply or a dual ±5V supply, providing flexibility in various power environments.
• ESD Protection: Enhanced electrostatic discharge (ESD) protection is built-in, safeguarding the switch against damage from static electricity.

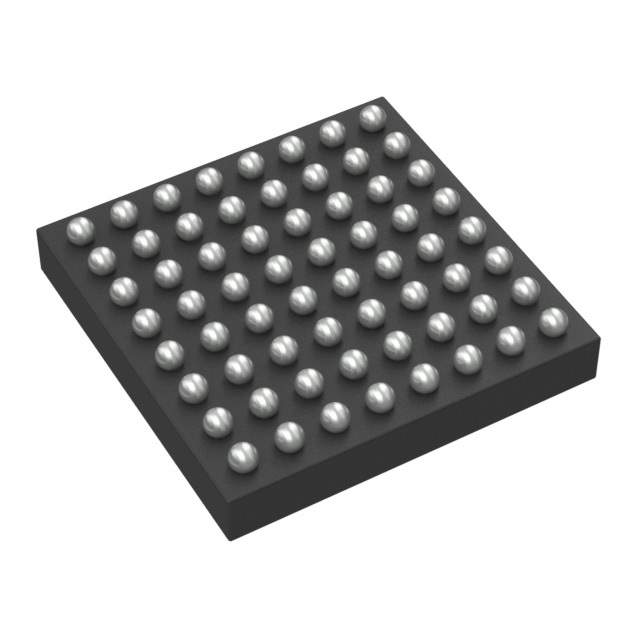

• Compact Package: The MAX4968BEXB+ comes in a compact, surface-mount package, saving valuable board space in dense circuit designs.

Applications

The MAX4968BEXB+ is versatile and can be used in multiple applications, including but not limited to:

• Data Acquisition Systems
• Audio and Video Switching
• Communication Systems
• Medical Equipment
• Test and Measurement Instruments

Performance Specifications

Boasting an impressive array of performance specifications, the MAX4968BEXB+ ensures optimal functionality in demanding scenarios:

• On-Resistance (Max): 10Ω
• On-Resistance Match Between Channels: 0.5Ω
• On-Resistance Flatness: 0.5Ω
• Total Harmonic Distortion (THD): 0.02%
• Off-Isolation at 50MHz: -75dB
• Crosstalk at 50MHz: -85dB

Quality and Reliability

Maxim Integrated is known for its commitment to quality, and the MAX4968BEXB+ is no exception. It is manufactured to the highest standards to ensure consistent performance and longevity, even in the most challenging conditions.
