The MAX4721EBL+T from Maxim Integrated is a cutting-edge, low-voltage, SPDT (Single Pole Double Throw) analog switch that is designed to deliver high performance with minimal power consumption. This component is part of Maxim's extensive range of switches and multiplexers that are widely used in various applications such as signal routing, data acquisition systems, and communication devices.

Key Features

• Low Voltage Operation: The MAX4721EBL+T operates at a single +1.8V to +5.5V supply, making it suitable for battery-powered and portable devices.
• High Switching Speed: With fast switching times of tON = 25ns and tOFF = 20ns, the device ensures rapid signal routing with minimal delay.
• Low Power Consumption: The device boasts ultra-low power consumption with a quiescent current of only 1µA (max), which is ideal for power-sensitive applications.
• High Bandwidth: The switch features a high bandwidth (>200MHz), allowing it to handle a wide range of frequencies without signal degradation.
• ESD Protection: It includes ESD protection diodes on all pins, providing a robust solution against static discharge events.

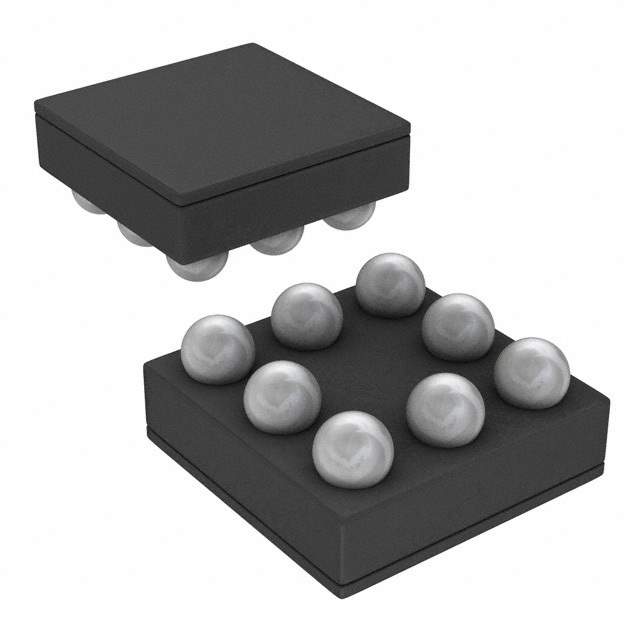

• Compact Packaging: The MAX4721EBL+T is available in a tiny 10-bump UCSP (1.4mm x 1.8mm) package, which is ideal for space-constrained applications.

Applications

With its versatile features, the MAX4721EBL+T is perfectly suited for a variety of applications, including but not limited to:

• Audio and video signal routing
• Communication systems
• Portable instrumentation
• Battery management systems
• Data acquisition systems

The MAX4721EBL+T is a testament to Maxim Integrated's commitment to providing high-performance, reliable, and efficient solutions for the electronics industry. Whether for designing compact consumer electronics or sophisticated industrial systems, this analog switch is engineered to meet the stringent requirements of modern electronic applications.
