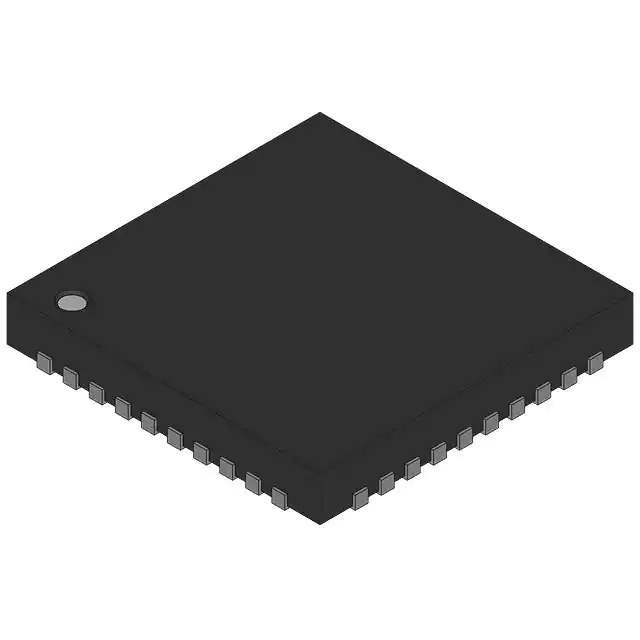

The MAX3786UTJ from Maxim Integrated is a state-of-the-art transimpedance amplifier (TIA) designed for high-speed signal processing in optical communication systems. This compact, high-performance component is ideal for converting the current output of photodiodes to a voltage signal with exceptional precision and speed. The MAX3786UTJ is particularly suitable for applications in fiber-optic receivers, where reliable and rapid data transmission is crucial.
Key Features
- High Bandwidth: The device offers a wide bandwidth that ensures high-speed operation, making it perfect for advanced optical networks with high data rate requirements.
- Low Noise: Engineered to provide low noise performance, the MAX3786UTJ helps to maintain signal integrity, which is critical for achieving high signal-to-noise ratios in communication systems.
- Adjustable Gain: The amplifier's gain can be adjusted to match the sensitivity of the photodiode, allowing for flexibility in various application scenarios.
- Single Power Supply: Operating on a single power supply voltage simplifies the power management design for the system in which it's integrated.
- Small Package Size: The compact UTJ package enables the device to be used in space-constrained applications without sacrificing performance.
Applications
- Fiber-optic receivers
- SONET/SDH systems
- Gigabit Ethernet
- Fiber Channel
- Optical network switching
Technical Specifications
Parameter
Value
Supply Voltage
+3.3V
Bandwidth
Variable (based on external components)
Package
UTJ (Ultra Thin J-lead)
The MAX3786UTJ transimpedance amplifier is a stellar choice for designers seeking a reliable, high-speed solution to interface with optical detectors in their communication systems. With Maxim Integrated's reputation for quality and performance, this product is poised to deliver outstanding results in the most demanding of applications.
