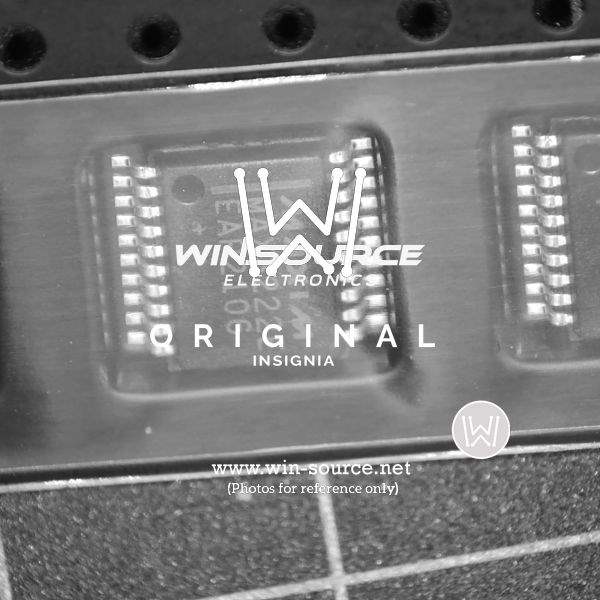

Product Overview: MAX3222EEAP+ from Maxim Integrated

The MAX3222EEAP+ is a high-performance, low-power, true RS-232 transceiver from Maxim Integrated, designed to meet the rigorous demands of modern serial communication applications. This IC is particularly ideal for portable or space-constrained applications due to its small 20-pin SSOP (Shrink Small Outline Package) form factor and its capability to operate from a single +3.0V to +5.5V power supply.

Key Features

• Low Voltage Operation: The MAX3222EEAP+ operates from a single +3.0V to +5.5V power supply, making it suitable for a variety of low-power and battery-operated devices.
• Low-Power Shutdown: It includes a shutdown feature that reduces the supply current to a mere 1µA, further conserving power when the device is not in active use.
• High Data Rate: This transceiver supports data rates up to 120kbps, ensuring efficient and reliable data transmission for high-speed serial communication.
• ESD Protection: The MAX3222EEAP+ offers enhanced ESD protection for its transceiver inputs and outputs, capable of withstanding ±15kV ESD hits, thus providing robust protection against electrostatic discharge events.
• Duplex Interface: It features a full-duplex interface with two drivers and two receivers, facilitating bidirectional communication.

Applications

• Notebook, Subnotebook, and Palmtop Computers
• Battery-Powered Equipment
• Handheld Equipment
• Peripherals
• Data Cable

The MAX3222EEAP+ is engineered to maintain the signal integrity and comply with the RS-232 standards while operating at a lower voltage and with reduced power consumption. Its built-in charge pump circuitry generates the necessary RS-232 voltage levels from the single power supply, eliminating the need for additional power sources. The device's receivers remain active during shutdown mode, allowing the IC to monitor for incoming data while consuming minimal power.

With its robust feature set, the MAX3222EEAP+ from Maxim Integrated is an excellent choice for designers looking for a reliable and energy-efficient RS-232 transceiver solution.
