Maxim Integrated's MAX1232MJA Microprocessor Monitor

The MAX1232MJA is a sophisticated microprocessor (µP) supervisory circuit designed by Maxim Integrated to monitor power supplies and microprocessor activity in digital systems. It provides excellent circuit reliability and low cost by eliminating external components and adjustments when used in conjunction with a microprocessor.

Key Features

• Power-Supply Monitoring: The MAX1232MJA ensures that the power supply remains within acceptable voltage limits, safeguarding your system against brownout conditions and power failures. It actively monitors the power supply voltage and automatically resets the microprocessor when it detects an out-of-tolerance condition.
• Microprocessor Monitoring: This device includes a watchdog timer that monitors the microprocessor activity. If the microprocessor fails to stroke the watchdog within a preset timeout period, the MAX1232MJA will issue a reset signal, ensuring the system can recover from a software lockup or malfunction.
• Manual Reset: A manual reset feature allows for an external pushbutton to initiate a system reset. This is particularly useful for system maintenance or emergency shutdown procedures.
• High Integration: The MAX1232MJA integrates several monitoring functions into a single package, reducing the need for multiple discrete components and simplifying design complexity.
• Temperature Range: This device operates over a wide temperature range, making it suitable for industrial applications where environmental conditions may vary.

Applications

The MAX1232MJA is ideal for use in microprocessor-based systems that require vigilant monitoring to maintain operational integrity. Its applications span across various sectors, including:

• Computers and Servers
• Embedded Systems
• Industrial Control Systems
• Telecommunications Equipment

Technical Specifications

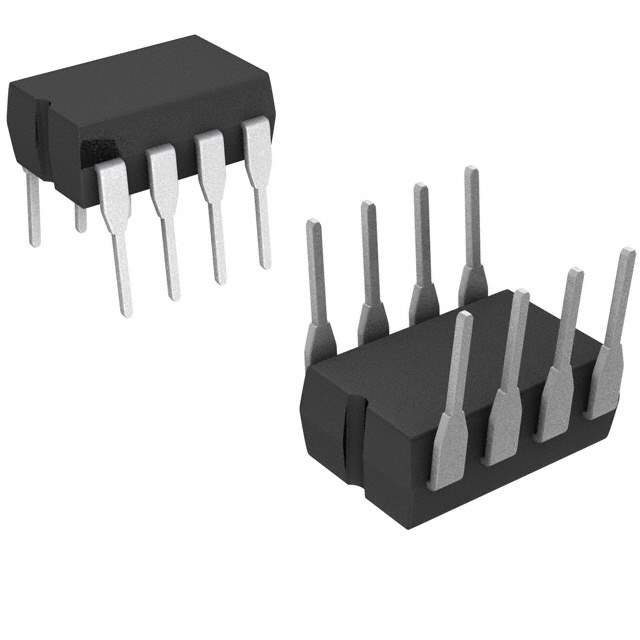

The MAX1232MJA is packaged in a compact 8-pin CERDIP package, which is suitable for space-constrained applications. It features a precision voltage monitor for 5V power supplies and a reset threshold voltage accuracy of ±4.5% over the full temperature range. The reset output is active-low and is guaranteed to remain asserted for a minimum of 100ms after VCC has risen above the reset threshold level, providing ample time for the system to stabilize.

For designers and engineers looking for a reliable microprocessor monitoring solution, the MAX1232MJA from Maxim Integrated is a proven choice that offers peace of mind through its robust feature set and simple integration.
