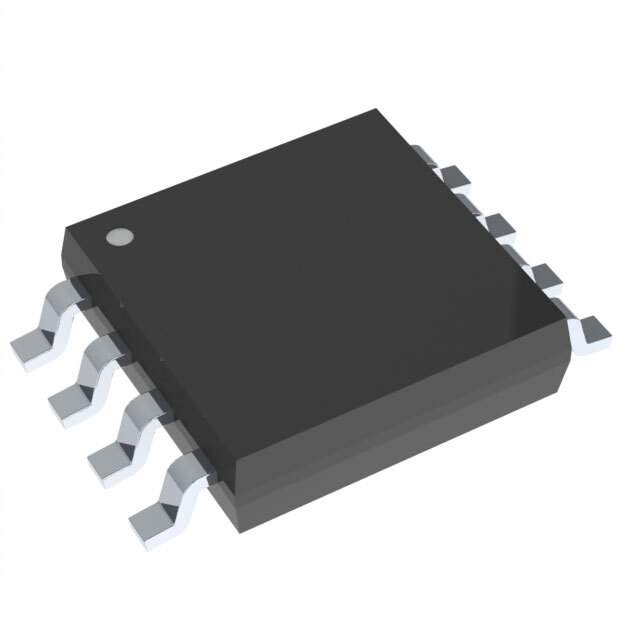

Maxim Integrated DS1869S-100+ Digital Potentiometer

The Maxim Integrated DS1869S-100+ is a robust digital potentiometer that offers a versatile solution for a wide range of applications requiring variable resistance adjustments. This digital potentiometer is part of Maxim's renowned DS1869 series and is designed to provide precision and reliability in digital control of voltage and current.

Key Features:

• Resistance Value: The DS1869S-100+ has a resistance value of 100kΩ, which is ideal for fine-tuning and calibration applications.
• Dual Potentiometer: It features two potentiometers in one package, allowing for dual control or adjustment of two separate signals simultaneously.
• Resolution: The device offers a 256-position resolution, enabling precise and incremental adjustments.
• Non-Volatile Memory: With integrated non-volatile memory (EEPROM), the DS1869S-100+ can store the last position before power-off, ensuring consistent performance across power cycles.
• Interface: It operates with a simple 3-wire serial interface that is compatible with most microcontrollers, making it easy to integrate into existing designs.
• Supply Voltage: The digital potentiometer operates over a wide supply voltage range of 4.5V to 5.5V, suitable for both 5V logic systems.
• Package: The DS1869S-100+ comes in a compact SOIC-8 package, ensuring a minimal footprint on PCB designs.

Applications:

The DS1869S-100+ is commonly used in applications that require precise adjustment of resistance without the need for manual tuning. These applications include:

• Adjustable power supplies
• Volume control in audio systems
• LCD screen contrast settings
• Calibration systems for sensors and instrumentation
• Automotive electronics for setting and recalling preferences

Maxim Integrated's commitment to quality and performance is evident in the DS1869S-100+ digital potentiometer. Its durability, precision, and ease of use make it an excellent choice for designers and engineers looking to add reliable digital control to their electronic projects.
