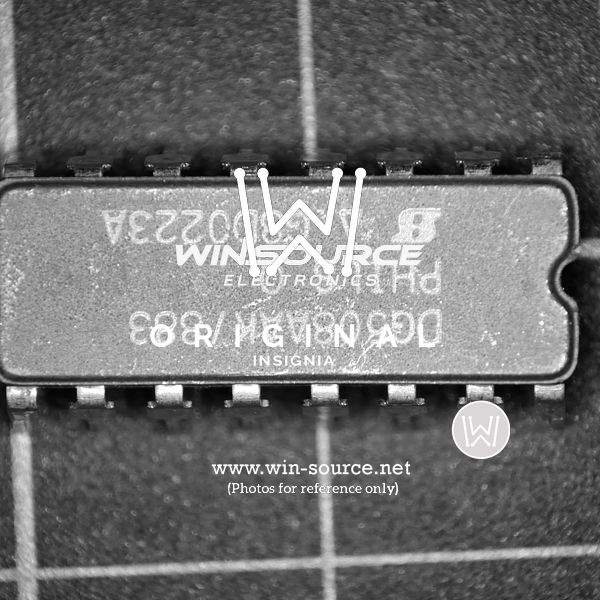

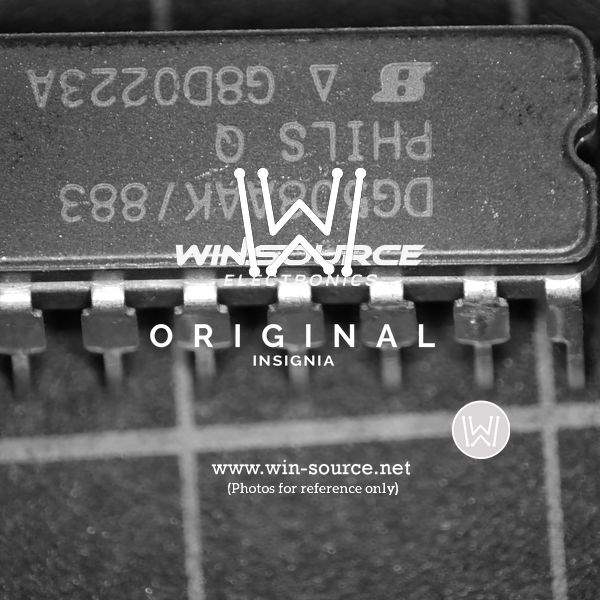

Maxim Integrated Product: DG508AAK/883

The DG508AAK/883 is a high-performance, monolithic CMOS analog multiplexer from Maxim Integrated, a company renowned for its innovative and reliable semiconductor products. This device is a part of the 883 series, which is specifically designed to meet the stringent requirements of military and aerospace applications. With its precision and durability, the DG508AAK/883 stands out as an ideal choice for mission-critical systems where reliability is paramount.

Key Features:

• Low On-Resistance: The device features a low on-resistance of 100Ω max, which minimizes signal attenuation and ensures excellent signal integrity.
• Single Supply Operation: It can operate from a single supply ranging from +10.8V to +16.5V or from dual supplies of ±4.5V to ±20V, providing flexibility in various circuit designs.
• High Off Isolation: The DG508AAK/883 offers high off isolation of -80dB at 50MHz, making it suitable for applications where signal crosstalk must be minimized.
• Low Crosstalk: With low crosstalk between channels of -80dB at 50MHz, it assures minimal interference between multiple signal paths.
• ESD Protection: The device includes built-in electrostatic discharge (ESD) protection, enhancing its robustness in harsh environments.
• TTL/CMOS Compatible: The control logic is TTL/CMOS compatible, allowing for easy integration with digital systems.

Applications:

The DG508AAK/883 is particularly suited for use in systems requiring high reliability and precision, such as:

• Military and Aerospace Equipment
• Data Acquisition Systems
• Communication Systems
• Test Equipment
• Process Control

With its robust design and versatile features, the DG508AAK/883 from Maxim Integrated is a top-tier component for designers who demand the highest level of performance and reliability. Whether used in the rigorous environment of space or the precise requirements of advanced communication systems, this analog multiplexer is engineered to exceed expectations.
