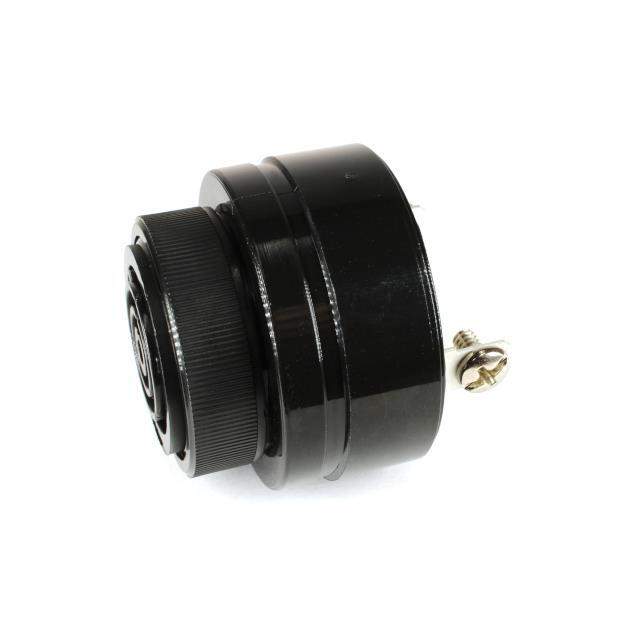

SC628NP Real Image
Same model may have multiple batches, images only for reference.

SC628NP

Part No SC628NP
Manufacturer Mallory Sonalert Products Inc.
Catalog Alarms, Buzzers, and Sirens
Description AUDIO PIEZO IND 6-28V PNL MNT
Datasheet
SC628NP Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Audio Products
Manufacturer Mallory Sonalert Products Inc.
Packaging Bulk
Status Active
Driver Circuitry Indicator, Internally Driven
Input Type DC
Voltage Range 6 to 28V
Frequency 2.9kHz
Technology Piezo
Operating Mode Pulse, Fast
Duration 2 to 10 PPS
Sound Pressure Level (SPL) 80dB @ 6V, 61cm
Operating Supply Current 4 to 16mA
Port Location Top
Temperature Range - Operating -30°C to 65°C
Mounting Panel Mount
Termination Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
Height - Seated (Max) 1.330" (33.77mm)
Win Source Part Number 1027303-SC628NP
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Sensing & Instrumentation, Audio
Quantity per package 1
Ultra Librarian 3D Model Ultra Librarian SC628NP CAD Model

Description

The Mallory Sonalert Products Inc. SC628NP is a piezo technology audio product that operates with a voltage range of 6 to 28V.

  • Frequency: 2.9kHz
  • Sound Pressure Level: 80dB @ 6V, 61cm
  • Temperature Range: -30°C to 65°C
  • Current Rating: 4 to 16mA
  • Applications: ideal for use in sensing and instrumentation, as well as audio applications
