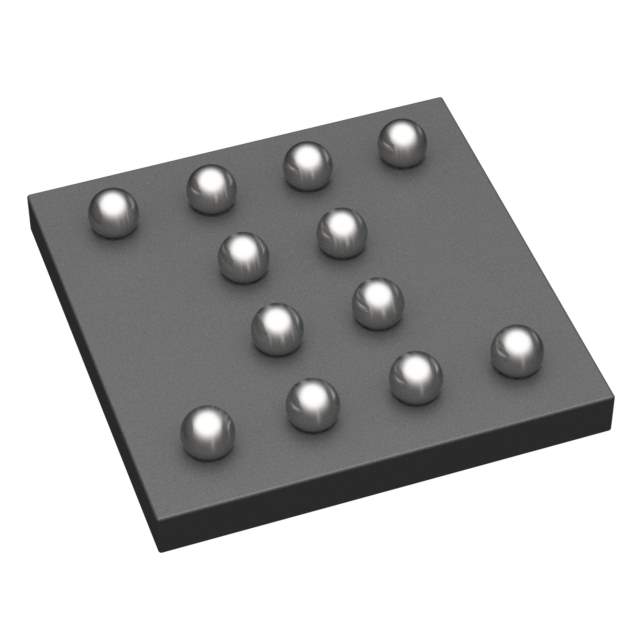

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Macronix
Series MXSMIO™
Package Tape & Reel
Product Status Active
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 32Mbit
Memory Organization 4M x 8
Memory Interface SPI - Quad I/O, QPI
Clock Frequency 133 MHz
Write Cycle Time - Word, Page 40µs, 3ms
Voltage - Supply 1.65V ~ 2V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 12-XFBGA, WLCSP
Supplier Device Package 12-WLCSP (2.02x2.09)
Base Product Number MX25U3232
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991B1A
HTSUS 8542.32.0071
Win Source Part Number 1356184-MX25U3232FBHI02
Ultra Librarian 3D Model Ultra Librarian MX25U3232FBHI02 CAD Model

Description

The MX25U3232FBHI02 is a 32Mbit NOR flash memory from Macronix.

  • Memory Size: 32Mbit
  • Memory Organization: 4M x 8
  • Voltage Supply: 1.65V to 2V
  • Operating Temperature: -40°C to 85°C
  • Clock Frequency: 133MHz
  • Write Cycle Time: 40μs
  • Interface: SPI with quad I/O and QPI support
  • Package / Case: 12-XFBGA
  • Product Category: Memory
  • Product Status: Active
