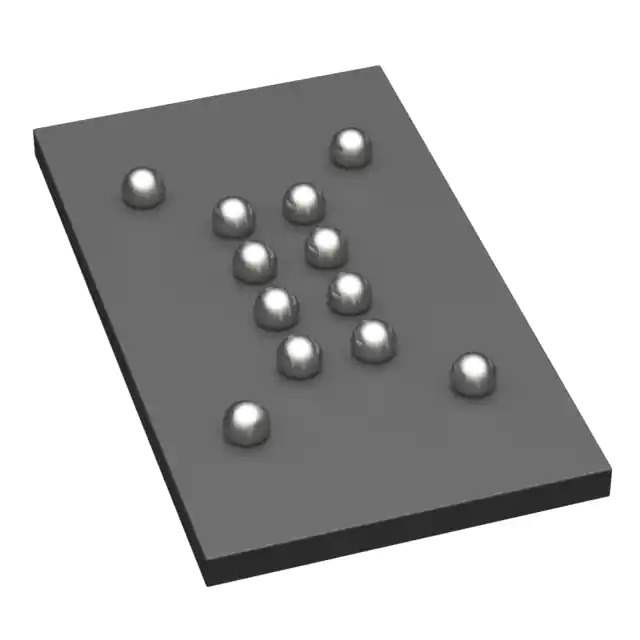

Same model may have multiple batches, images only for reference.

MX25U1635FBAI-10G

Name: MX25U1635FBAI-10G
Brand: Macronix
SKU: 805115
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	MX25U1635FBAI-10G
Manufacturer	Macronix
Catalog	Memory
Description	IC FLASH 16MBIT SPI/QUAD 12WLCSP
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs) - Memory - Memory
Mfr	Macronix
Series	MX25xxx35/36 - MXSMIO™
Package	Tape & Reel
Product Status	Not For New Designs
Programmable	Not Verified
Memory Type	Non-Volatile
Memory Format	FLASH
Technology	FLASH - NOR
Memory Size	16Mbit
Memory Organization	2M x 8
Memory Interface	SPI - Quad I/O
Clock Frequency	104 MHz
Write Cycle Time - Word, Page	30µs, 1.5ms
Voltage - Supply	1.65V ~ 2V
Temperature Range - Operating	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	12-UFBGA, WLCSP
Supplier Device Package	12-WLCSP
Base Product Number	MX25U1635
Standard Package	6,000 pcs
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	3A991B1B1
HTSUS	8542.32.0071
Win Source Part Number	805115-MX25U1635FBAI-10G
Ultra Librarian 3D Model	Ultra Librarian MX25U1635FBAI-10G CAD Model

Description

The MX25U1635FBAI-10G is a 16Mbit FLASH - NOR memory IC from Macronix.

Series: MX25xxx35/36 - MXSMIO™
Package: 12-UFBGA, WLCSP
Voltage Supply: 1.65V to 2V
Operating Temperature: -40°C to 85°C
Memory Interface: SPI - Quad I/O
Clock Frequency: 104 MHz
Write Cycle Time (Word): 30µs
Write Cycle Time (Page): 1.5ms
Memory Size: 16Mbit
Programmable: Yes (not verified)
Applications: Smart cards, wearable devices, automotive
