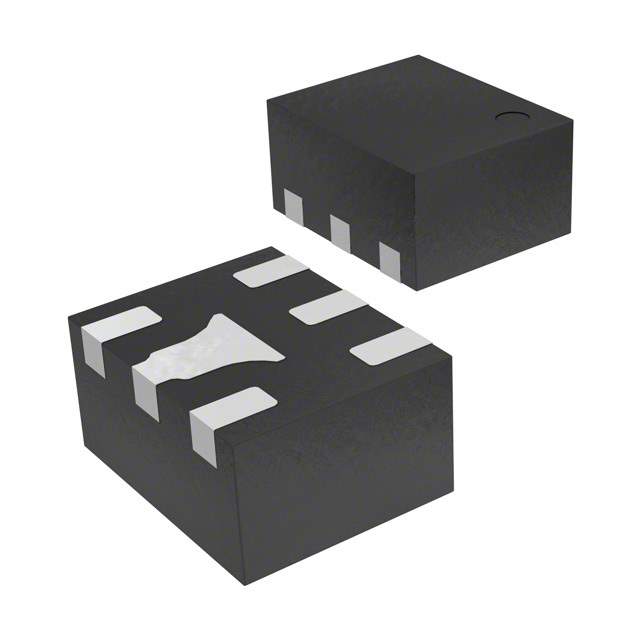

MASWSS0167TR-3000 Real Image
Same model may have multiple batches, images only for reference.

MASWSS0167TR-3000

Part No MASWSS0167TR-3000
Manufacturer M/A-Com Technology Solutions
Catalog RF Switches
Description SWITCH SPDT GAAS MMIC 6QFN
Datasheet
MASWSS0167TR-3000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer M/A-Com Technology Solutions
Packaging Reel
Part Status Active
Frequency - Lower 500MHz
Frequency - Upper 3GHz
Isolation @ Frequency 24dB @ 3GHz (typ)
Insertion Loss @ Frequency 0.5dB @ 3GHz
Topology Reflective
Circuit SPDT
P1dB 28dBm
Impedance 50 Ohm
Temperature Range - Operating -40°C ~ 85°C
RF Type WLAN
Case 6-VFDFN Exposed Pad
Supplier Device Package 6-PQFN (1.2x1.5)
Win Source Part Number MASWSS0167TR-3000-207808
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MASWSS0167TR-3000 CAD Model

Description

The M/A-Com Technology Solutions MASWSS0167TR-3000-207808 is a SPDT reflective switch with an impedance of 50 Ohms.

  • Frequency Range: 500MHz to 3GHz
  • Isolation: 24dB @ 3GHz (typical)
  • Insertion Loss: 0.5dB @ 3GHz
  • P1dB: 28dBm
  • Suitable for: use in WLAN applications
  • Package: 6-PQFN (1.2x1.5)
  • Temperature Range: -40°C to 85°C
