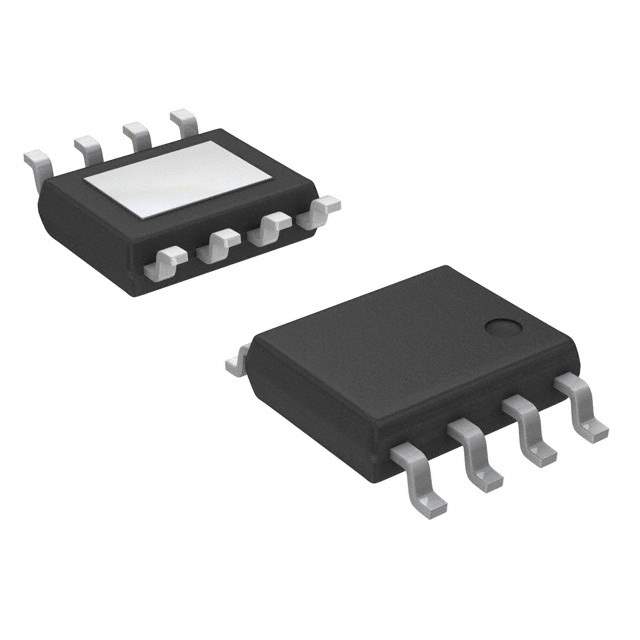

MAAM-011163-TR1000 Real Image
Same model may have multiple batches, images only for reference.

MAAM-011163-TR1000

Part No MAAM-011163-TR1000
Manufacturer M/A-Com Technology Solutions
Catalog RF Amplifiers
Description IC RF AMP 5 - 1218 MHZ SOIC-8EP / Low Distortion Performance
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer M/A-Com Technology Solutions
Packaging Reel
Frequency 5MHz ~ 1.218GHz
P1dB 25dBm
Gain 21.5dB
Noise Figure 2.4dB
RF Type General Purpose
Supply Voltage (V) 5V
Current - Supply 290mA
Test Frequency 45MHz ~ 1.218GHz
Manufacturer Package 8-SOIC Exposed Pad
Supplier Device Package 8-SOIC-EP
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 814115-MAAM-011163-TR1000
Ultra Librarian 3D Model Ultra Librarian MAAM-011163-TR1000 CAD Model

Description

The M/A-Com Technology Solutions 814115-MAAM-011163-TR1000 is a general-purpose RF transistor with a gain of 21.5dB and a noise figure of 2.4dB.

  • Gain: 21.5dB
  • Noise Figure: 2.4dB
  • Test Frequency: 45MHz to 1.218GHz
  • Supply Current: 290mA
  • P1dB: 25dBm
  • Package: 8-SOIC-EP
  • Packaging: Reel
  • Supply and Demand Status: Limited
